Compeletly Metal Reel Portable with four wheels for Tactical Military armoured Fiber Optic Cable
Base specification
Product details
Product Specification
| Place of Origin | Dongguan China | Gross Weight | 23KG |
| Wheels | Four wheel | Packaging Details | Wooden box |
| Package type | Wooden box | Fetures | All metal structure, 3 speed rate adjustable, rod, pulley. |
| Material | Compeletly Metal | Model Number | LP-10 |
| Supply Ability | 20000 Meter/Meters per Week | Certification | ISO 9001 2015 |
| Brand Name | Qingying or QY | Payment Terms | L/C, T/T, Western Union |
| Enviroment | Harsh ,water, snow, Telecomunication | Price | negotiation |
| Delivery Time | 7 days after receive payment | Product name | Metal cable reel |
| Minimum Order Quantity | 1 pcs | Cable Length | 200m-3000m |
| Reel size | 390mm*490mm*590mm | Application | Tatical military optical fiber cable |
Product Description

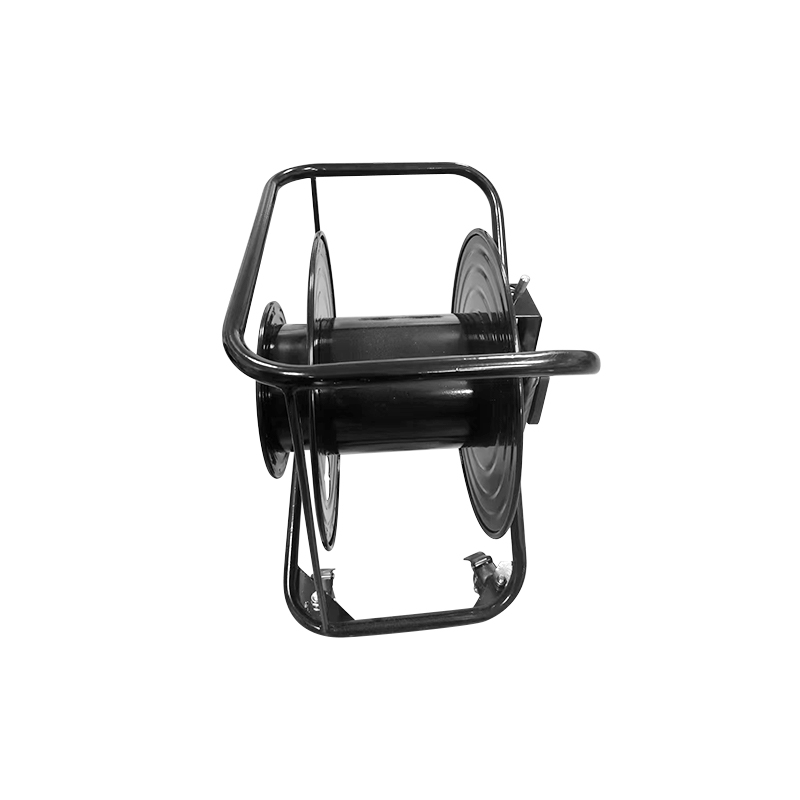

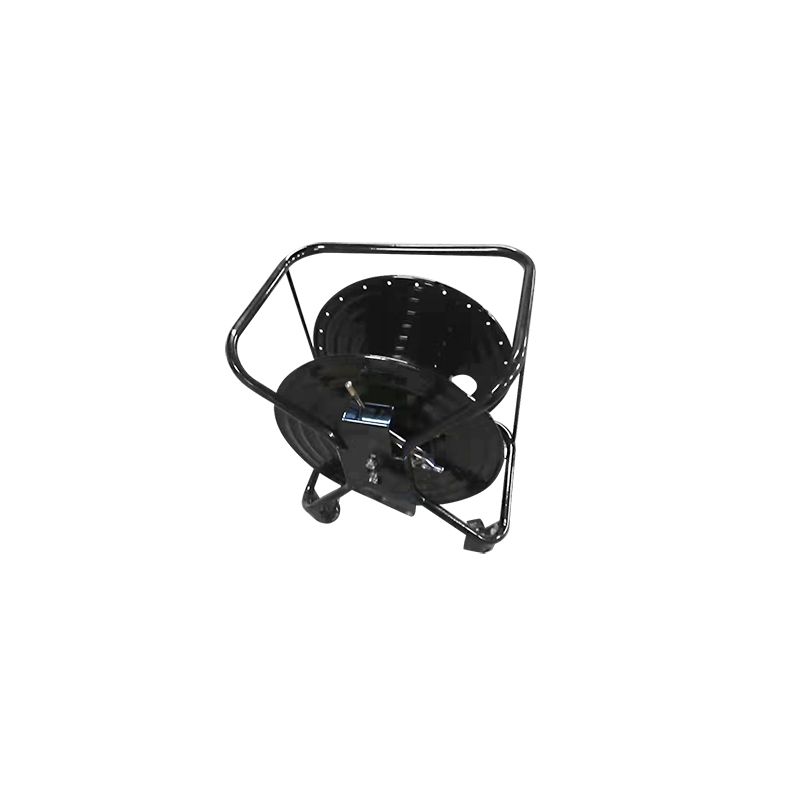

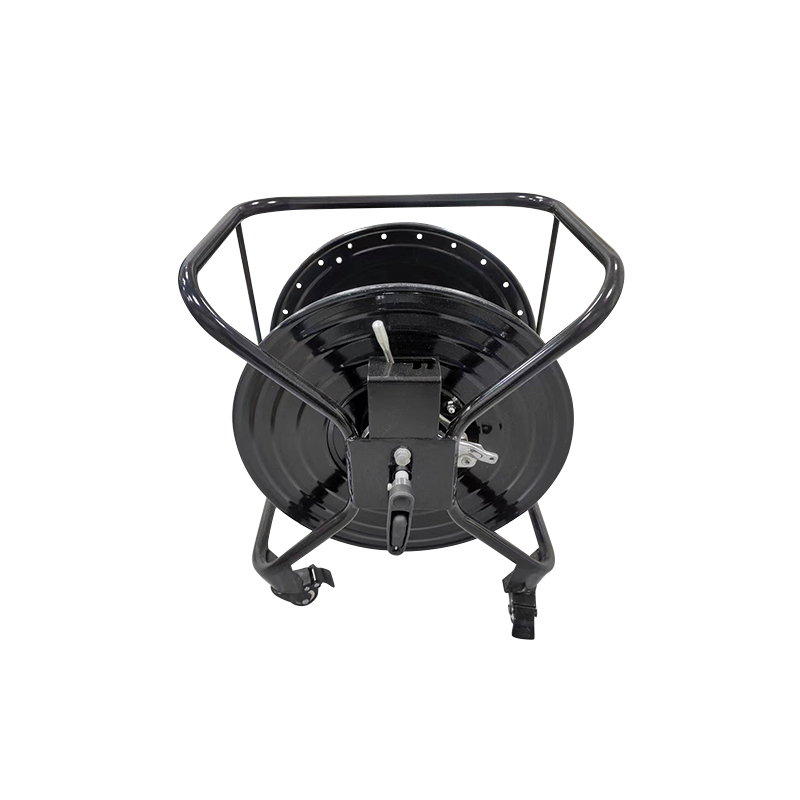

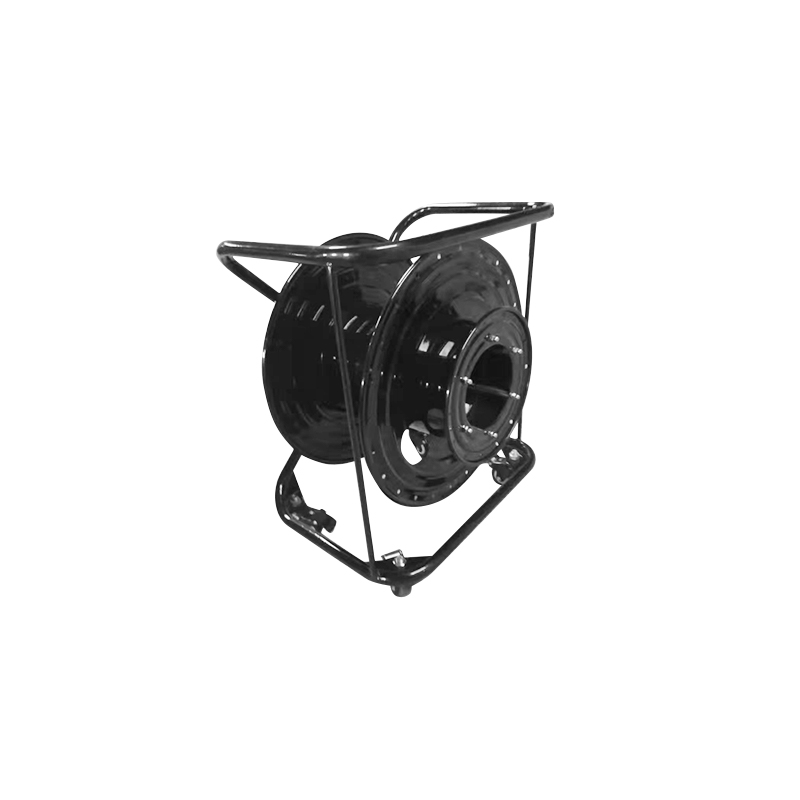

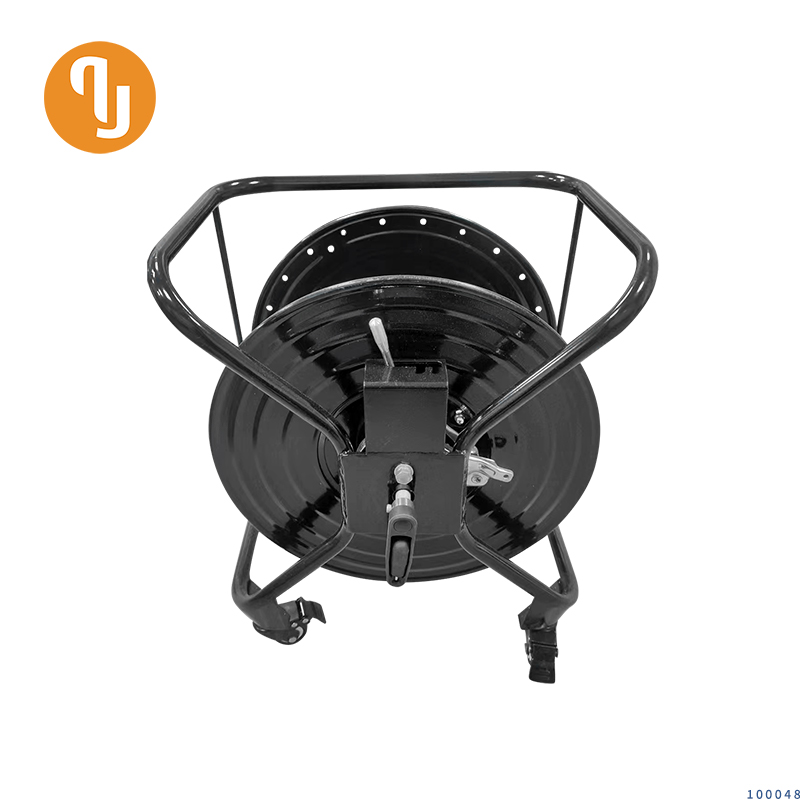

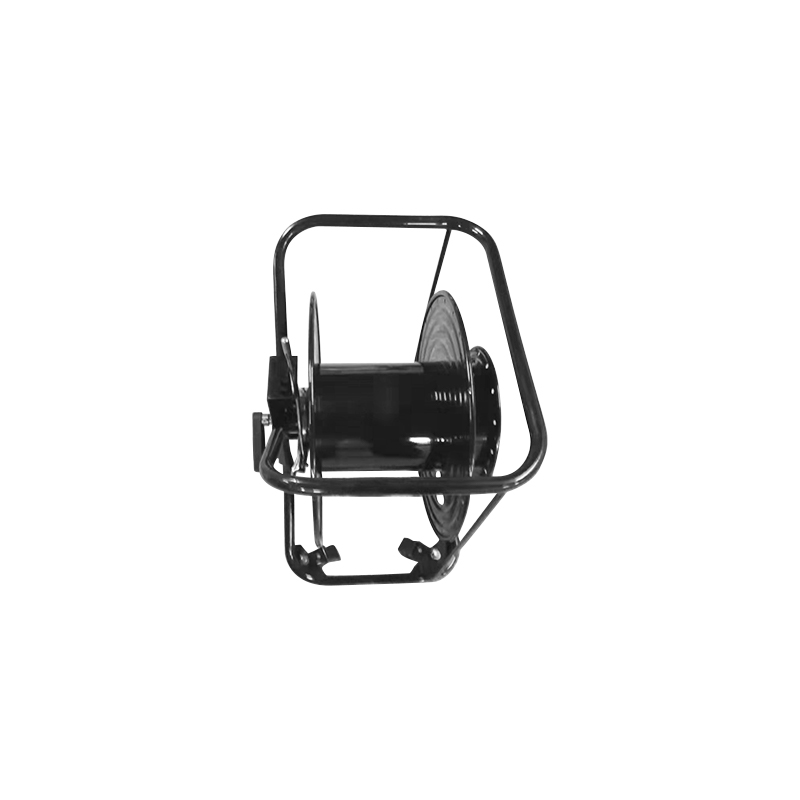

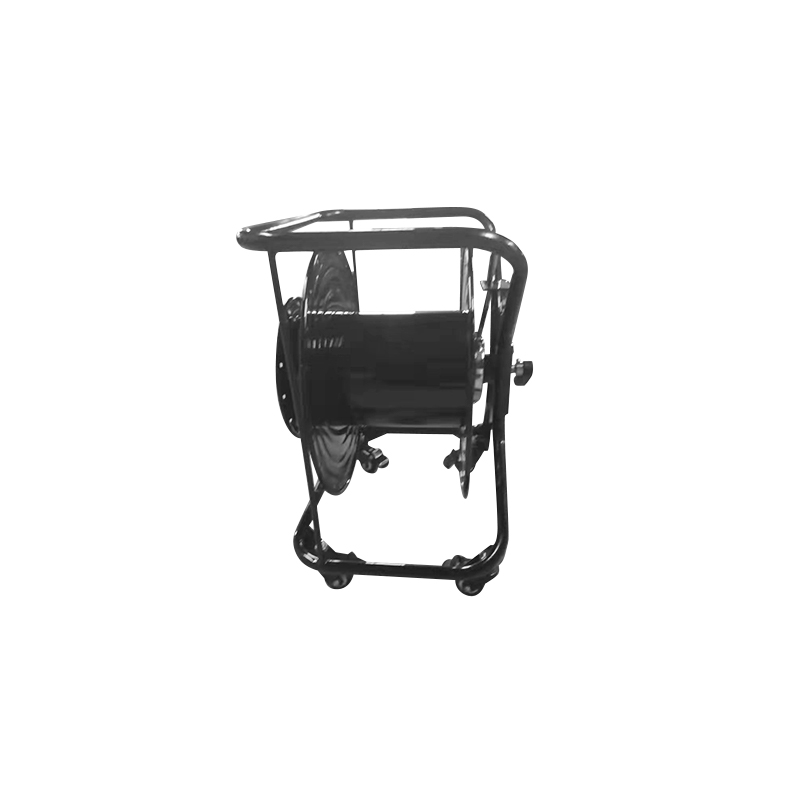

Compeletly Metal Reel With Four Wheels Portable For Tactical Military Fiber Optic Cable
Overall:
The mobile per-terminated armoured cable reel is developed for temporary field deployment where fiber connections are required. It comes in a portable cable reel for ease of transportation and deployment. The armoured cable is flexible and is able to withstand multiple usages without kinks.
One end of the cable is fixed to the reel while the other end is coiled freely for patching to the equipment. Generally these will be customized base on user's requirement so there are options of various cable and connector type with any cable length which then will determine the size of the reel.
Advantages:
1. Internal fiber contacts prevent contamination and damage to fiber ends
2. Stainless steel dustcaps are durable and waterproof
3. High impact and crush resistance
4. Stainless steel precision machined for durability
5. Handle permanently attached to disc - direct crank rewind
6. Adjustable cam-lock drag brake
7. Storage drum extensions for breakout and easy access
Key features:
| Product model | LP-10 | |||||||
| Packing size | 390*490*590mm | |||||||
| Gross weight | 23KG | |||||||
| Net weight | 16.5KG | |||||||
| Material | Metal | |||||||
| Cable diameter | 3.0mm | 4.0mm | 5.0mm | 6.0mm | 7.0mm | 8.0mm | 9.0mm | 10.0mm |
| Capacity | 3000m | 1600m | 1000m | 800m | 600m | 400m | 300m | 200m |
Package: with wooden box
