Product presentation

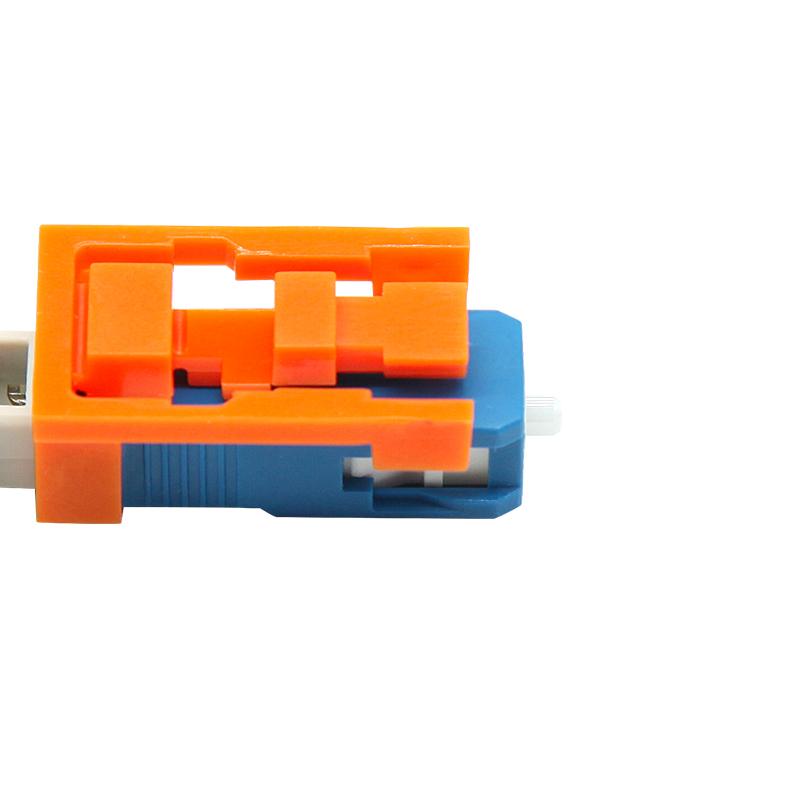

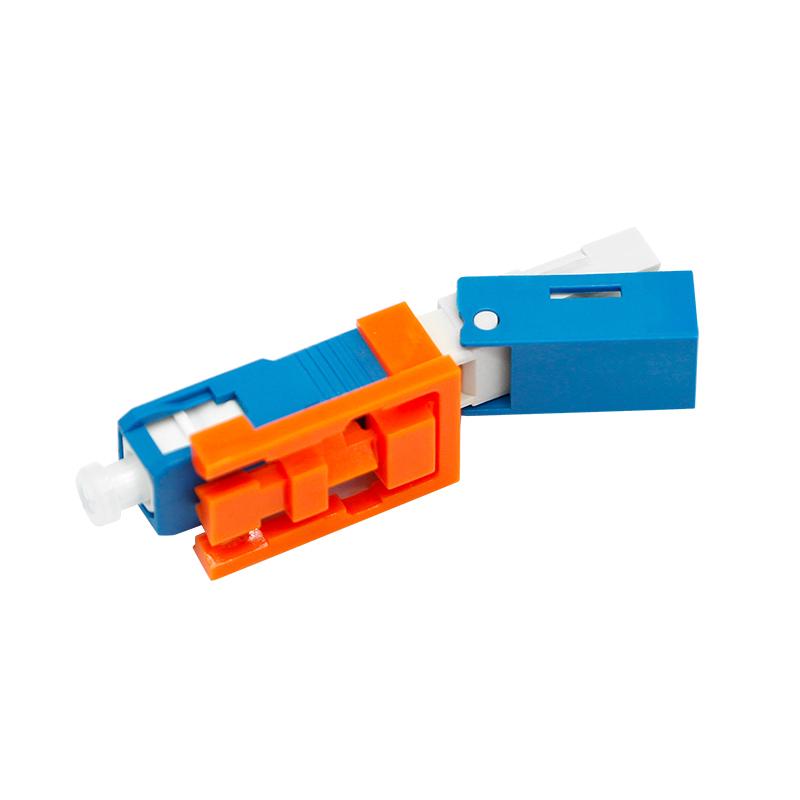

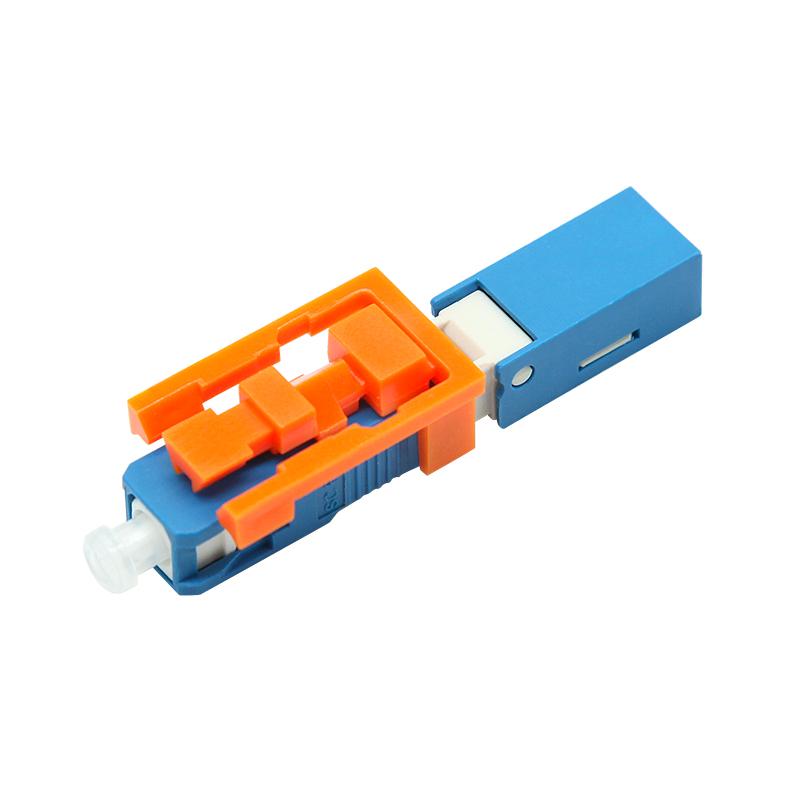

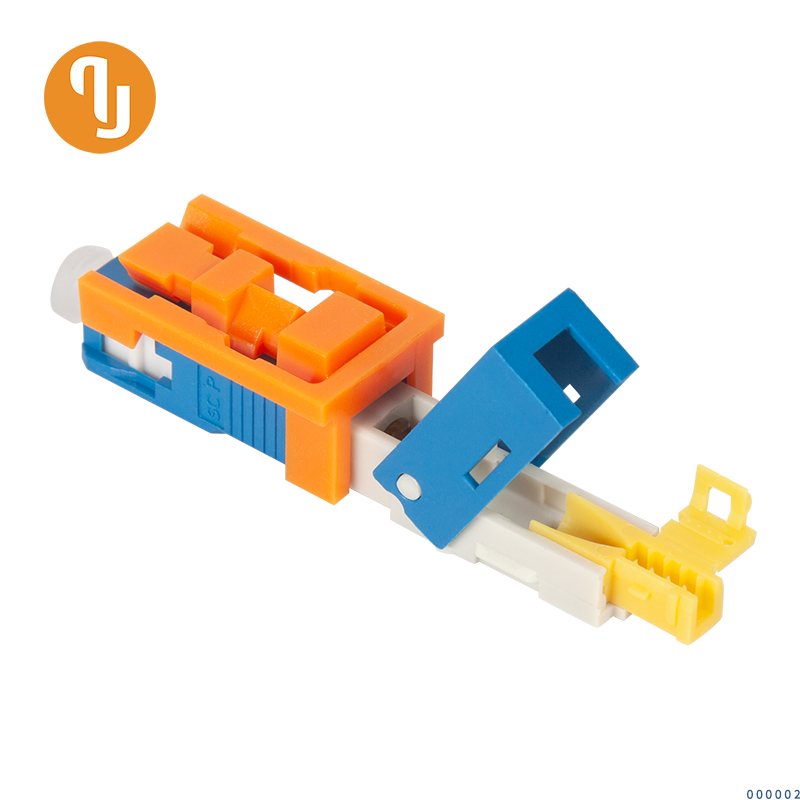

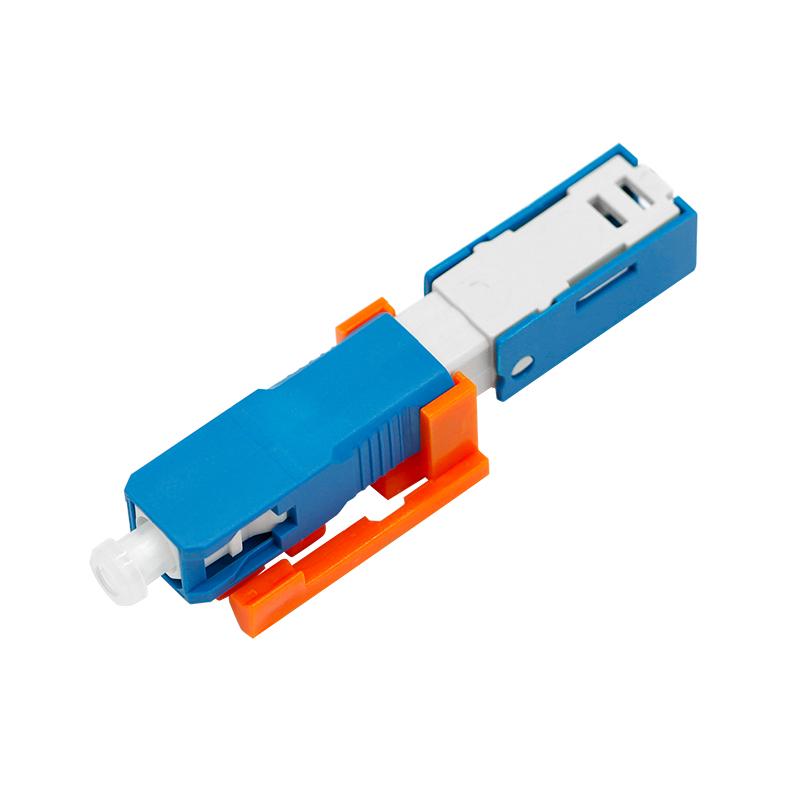

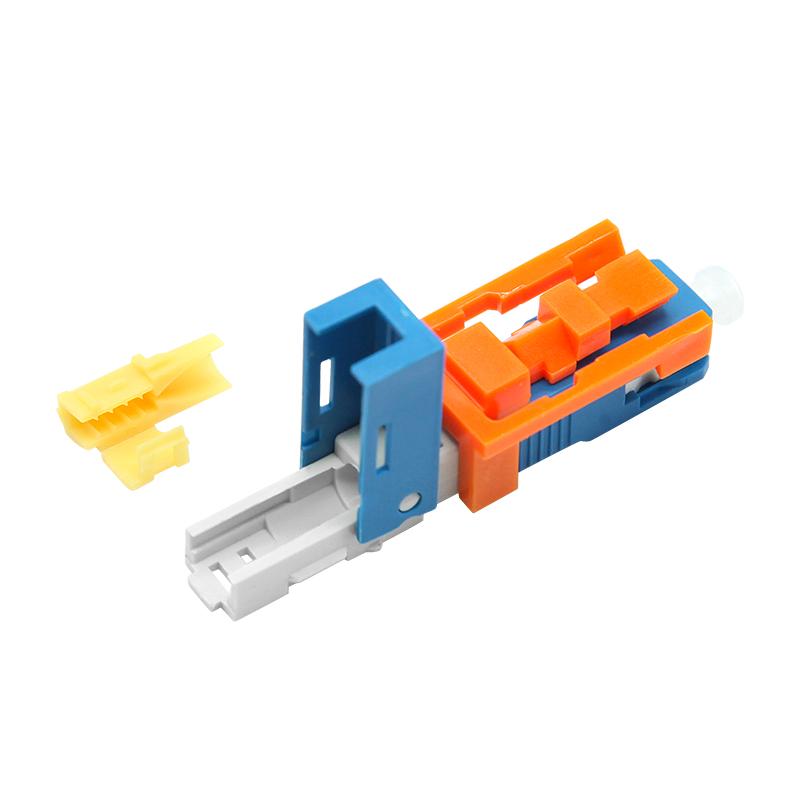

QSC50KJ4-UPC_SC/UPC Singlemode Pre-Polished Ferrule Field Assembly Fast Connector
Base specification
Product details
QSC50KJ4-UPC/APC
SC Fiber Optic Fast Connector Field Assembly Connector
Product Features

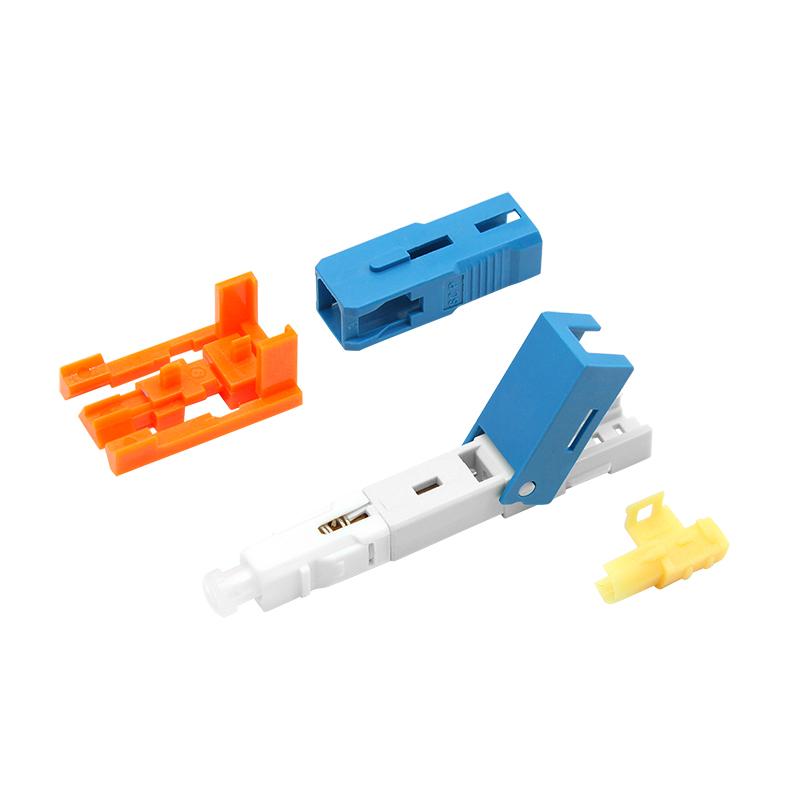

1. Advantages: By using an additional butterfly shaped fiber optic cable locking component, the fiber optic cable can be fixed onto it, making installation simple and convenient

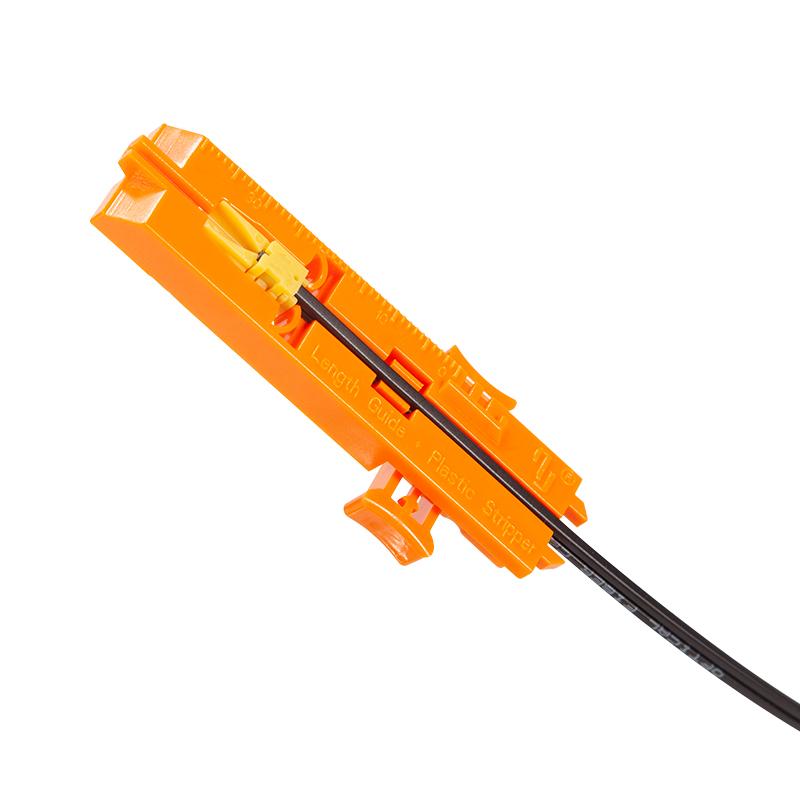

2. Plastic blade fiber stripping: The guide rail tool strip has a plastic blade fiber stripping function. Due to the use of plastic blades to remove the coating layer, it avoids the possibility of metal blades of the fiber stripping pliers scratching the surface of the optical fiber, resulting in proportional microcracks. As a result, the cracks gradually expand to the possibility of fiber breakage or breakage during long-term use. Safer and more reliable.
3. Features: Low insertion loss, low usage cost, good maintainability, fast installation speed, reusable
4. Material: The fiber optic clamping mechanism is made of alloy plastic PEI, which has extremely low deformation due to temperature changes and long-term clamping creep deformation. Other plastics are PBT and PE, which are environmentally friendly. SUS304 is selected as the internal metal component. Therefore, the product is suitable for low cold and high heat environments and is environmentally friendly
4. Scope of use: Intelligent high-speed broadband applications, security monitoring systems, fiber optic home access, broadband campus network, broadband cable TV, community fiber to the building, intelligent TV
5. Specification
|
Items |
Parameters |
|
IL |
≤0.3dB, MAX0.5dB |
|
RL |
UPC≥50dB；APC≥60dB |
|
Assemble time |
≤3mins, average |
|
Assemble pass rate |
≥95% |
|
Assemble repeat time |
≥5 |
|
Tension |
25N |
|
Cable |
3.0x2.0mm Drop cable |
|
If order an added stick, support 2.0x1.6 small drop cable (Low friction optical cable) |
|
|
Embedded fiber |
G657A1, or OEM G652D, MM62.5/125, MM50/125, OM3, OM4 |
|
Work temperature |
-25~+75°C or -40~+85°C |
|
Storage temperature |
-40~+85°C |
|
Fire resistance |
UL 94-V0 or as customer required |
|
Environment |
RoHS |
|
Accessories |

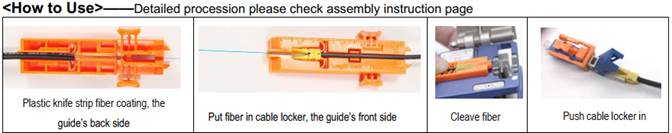

Guide part with plastic knife, use to guide the stripped length with plastic knife, cleave length (on fiber cleaver), and Operating Manual |
6.Warranty and Services
• 100% tested in factory
• 1-year warranty, lifetime technical support
. The Fast connector series is a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Features
• Factory price, can be reused
• Using simple tools without electrical power, no special tools are needed to install
• Easy and fast installation, 30 seconds to learn to install, 90 seconds to operate in the field
• No need for polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished
• Fiber aligned in v-groove through the ceramic ferrule
• Low-volatile reliable matching liquid preserved by side cover
• Unique bell-shaped boot maintains the minimum fiber bend radius
Application
- FTTH
- For the connection between the distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
- Backbone installation
- Data center cabling
- Telecommunication network
- Industrial & Military

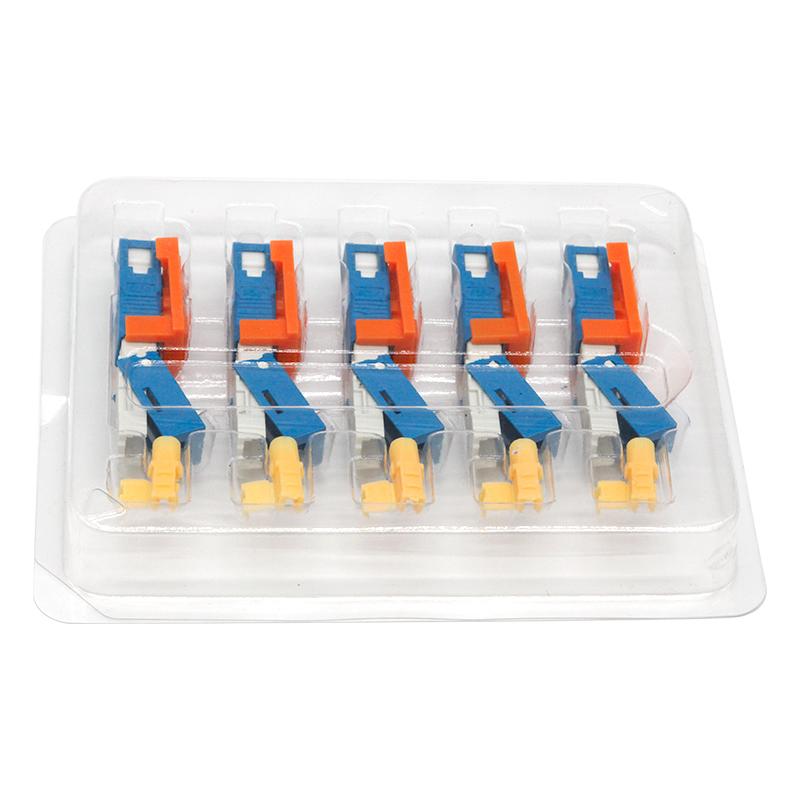

Packing & Labeling
