QLC35Z1-APC-0.9_LC/APC Field Assembly Connector Fast Connector Fiber Optic
QLC35Z1-APC-0.9_LC/APC Field Assembly Connector Fast Connector Fiber Optic
Hot
Hot
Sales Hotline: qy99@qyftth.com
0 Parameter
Bulk trade. Freight rates will be negotiated separately.
comprehensive qualifications
after-sale guarantee
equitable price
Product presentation
QLC35Z1-APC-0.9_LC/APC Field Assembly Connector Fast Connector Fiber Optic
Base specification
Product details
Product Specification
| Place of Origin | Dongguan, China | Return loss | ≥ 60dB |
| Selling Units | Single item | Packaging Details | Package details: 45 X 25 X 24 CM:(1000PCS) |
| Color | Green | Model Number | |
| Supply Ability | 20000 Piece/Pieces per Week SC PC UPC Fast Connector | Certification | IEC or ISO9001 |
| Brand Name | QualitY or QY | Payment Terms | L/C, T/T, Western Union, Paypal |
| Price | Negotiable | Delivery Time | 5-12 working days |
| OEM | Support | Minimum Order Quantity | 100 Piece |
| Insertion loss | ≤0.3dB | Application | CWDM System/PON Networks/CATV Links . |
| Fiber type | Single mode | Operating temperature | -25°C ~ +70°C |
Product Description

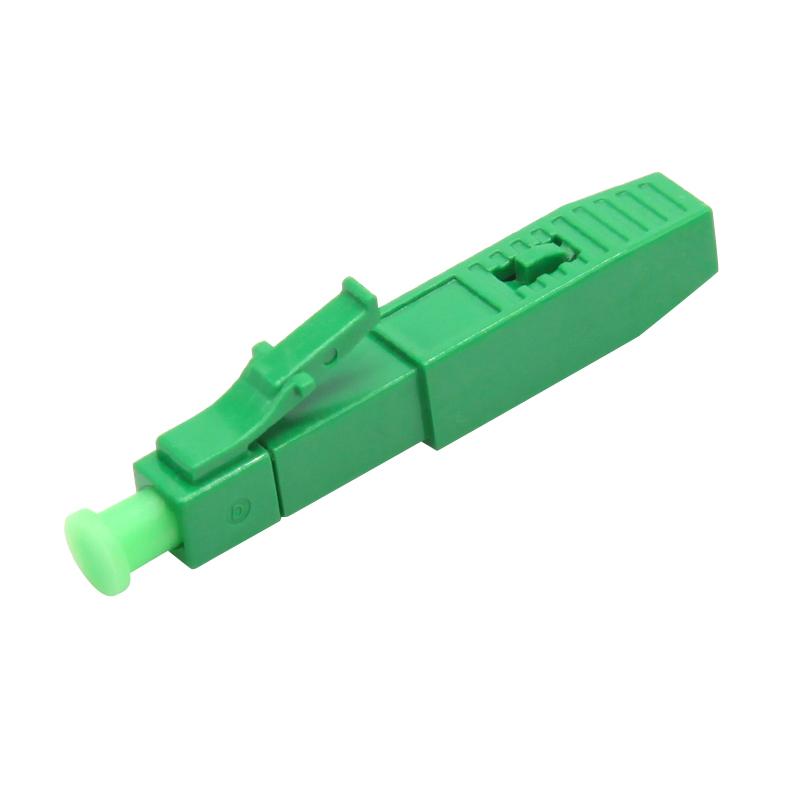

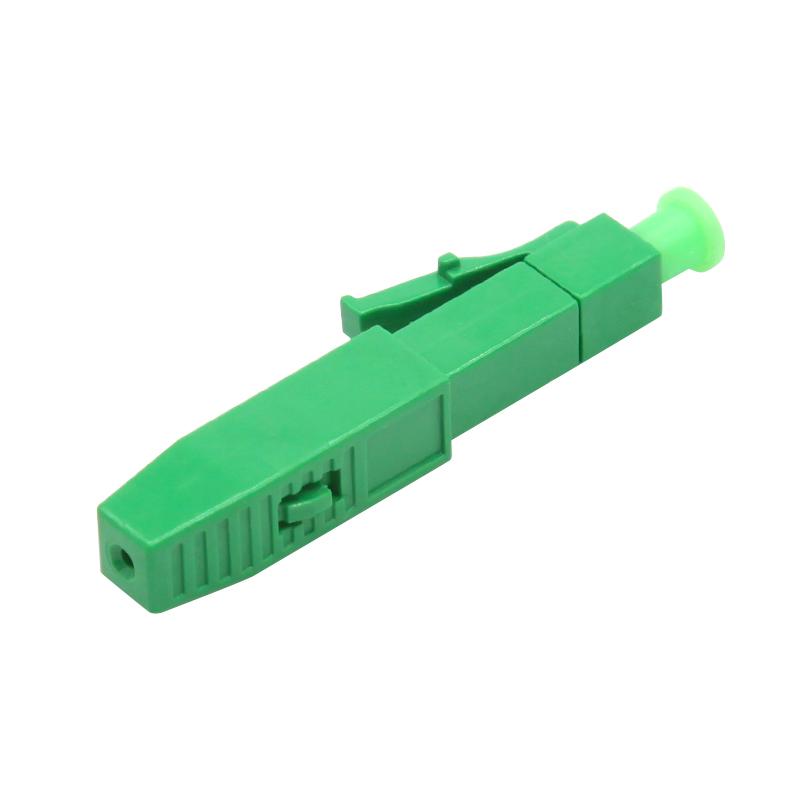

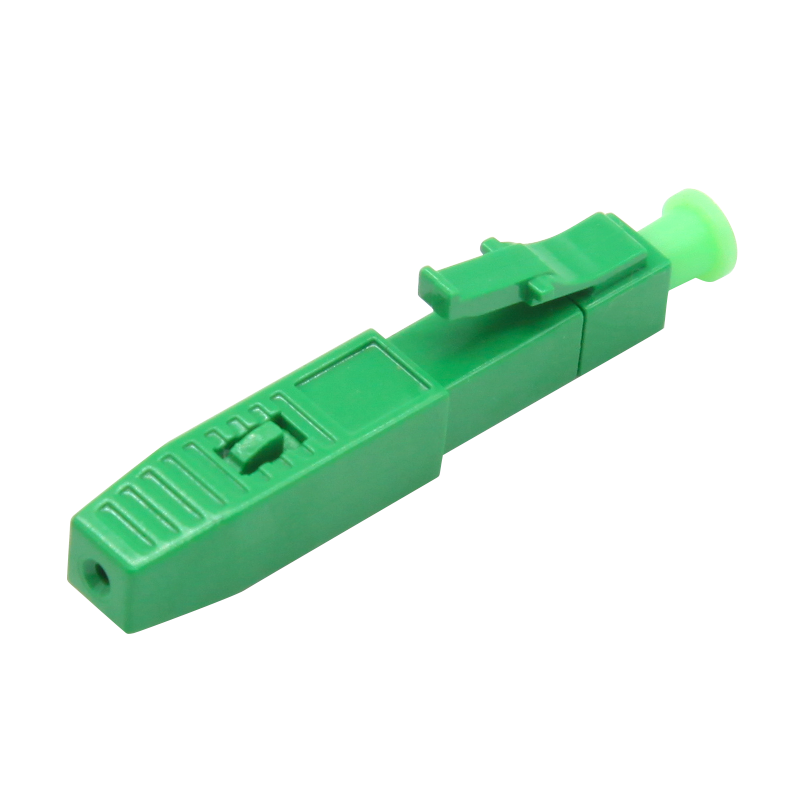

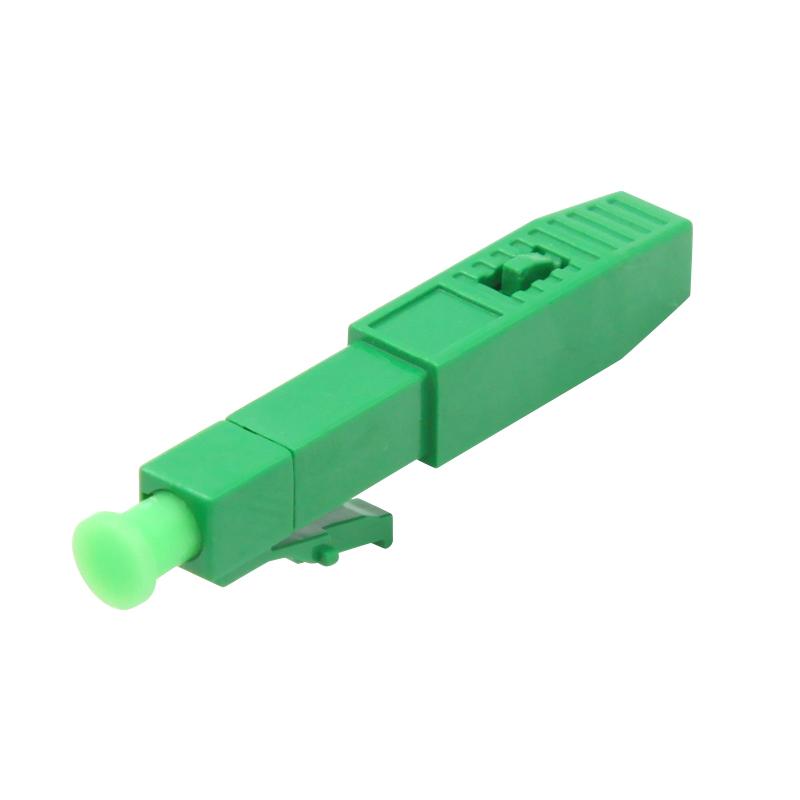

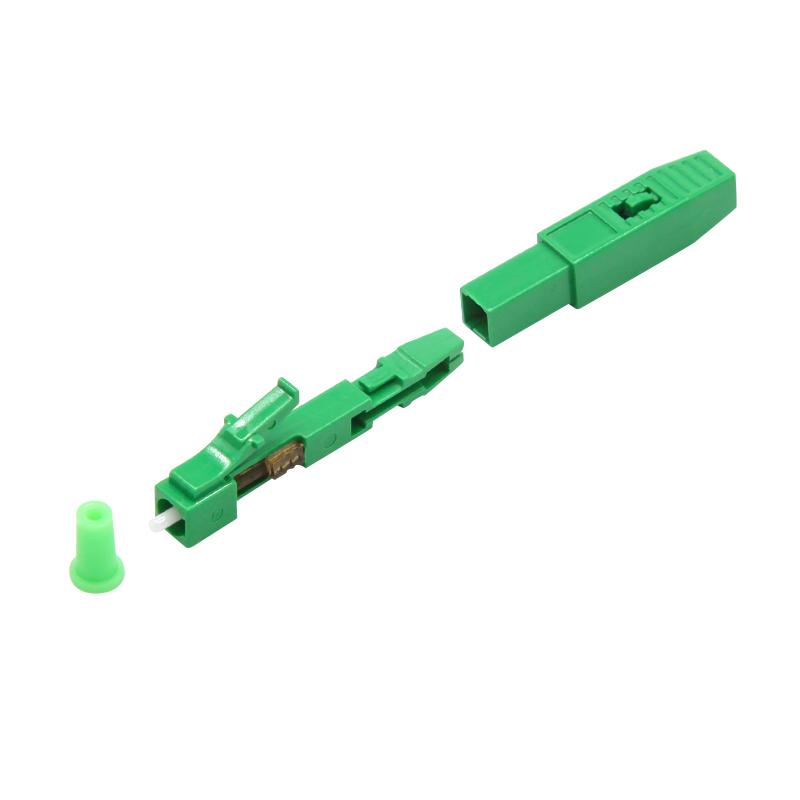

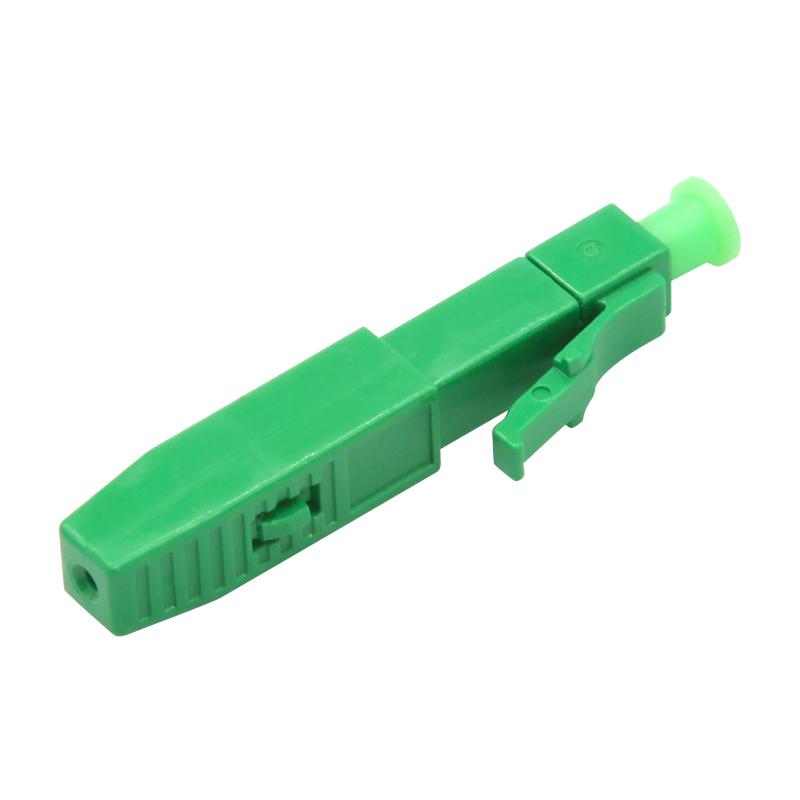

LC/APC Field Assembly Connector Fast Connector Fiber Optic
Overview
A series of SC field-installable connectors (FIC). These fibre optic connectors are factory terminated and polished which allow for fast and reliable connections. The superior quality fibre connectors require no epoxy polishing or crimping making them ideal for applications where time is of the essence. The single-mode simplex connectors in this range have 9/125 fibre size and come in both APC and PC polish options. The connectors also feature a window that enables testing with a visual fault locator.
Features
- ROHS, CE compliant
- Reduces assembly time and simplifies training
- Easy-to-install adapters and connectors
- Compatible with standard SC adapters
- Helps minimize transmission problems
- Optimizes optical contact
Application
- Teletechnocal Networks
- CATV Networks
- LAN & WAN
- Measuring Equipment
- Broadband
- FTTH
Specification
|
Item Name |
Unit |
SC/APC Field Installable Connector |
|
| Grade S (Standard) | Grade P (Premium) | ||
| Fiber Type | um | 9/125 | 9/125 (Corning) |
| Polishing | --- | APC | |
| Insertion Loss | dB | ≤0.5 | ≤0.3 |
| Return Loss | dB | ≥50 | ≥60 |
| Repeatability | dB | ≤0.1 | |
| Interchangeability | dB | ≤0.2 | |
| Operating Temp. | ℃ | -25 ~ +70 | |
| Durability | times | ≥1,000 | |
| Reusability | times | ≥5 | |
| Tensile Strength | N | ≥50 | |
