Product presentation



Base specification



Product details



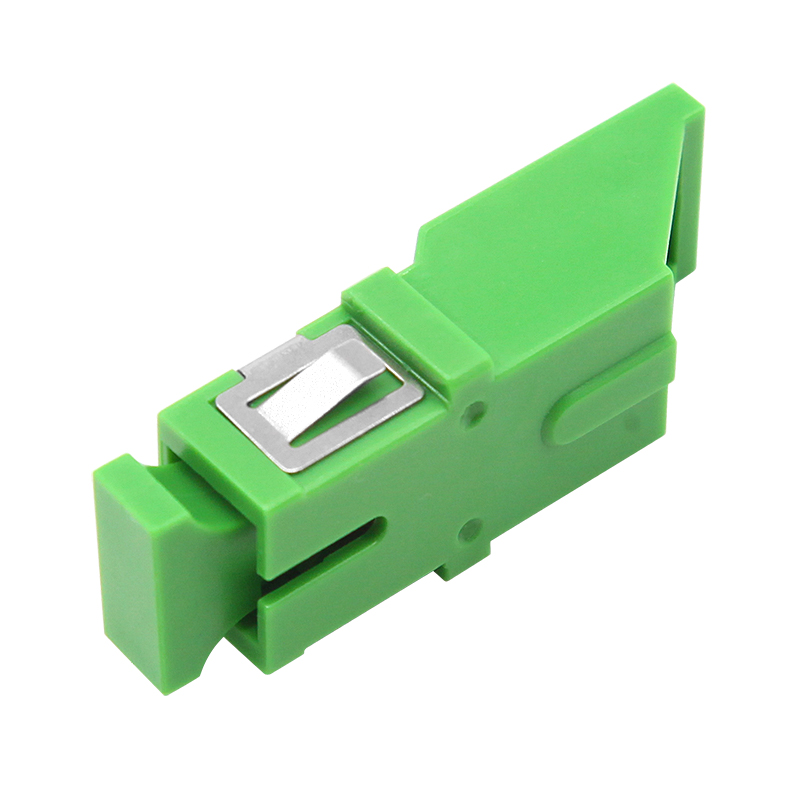

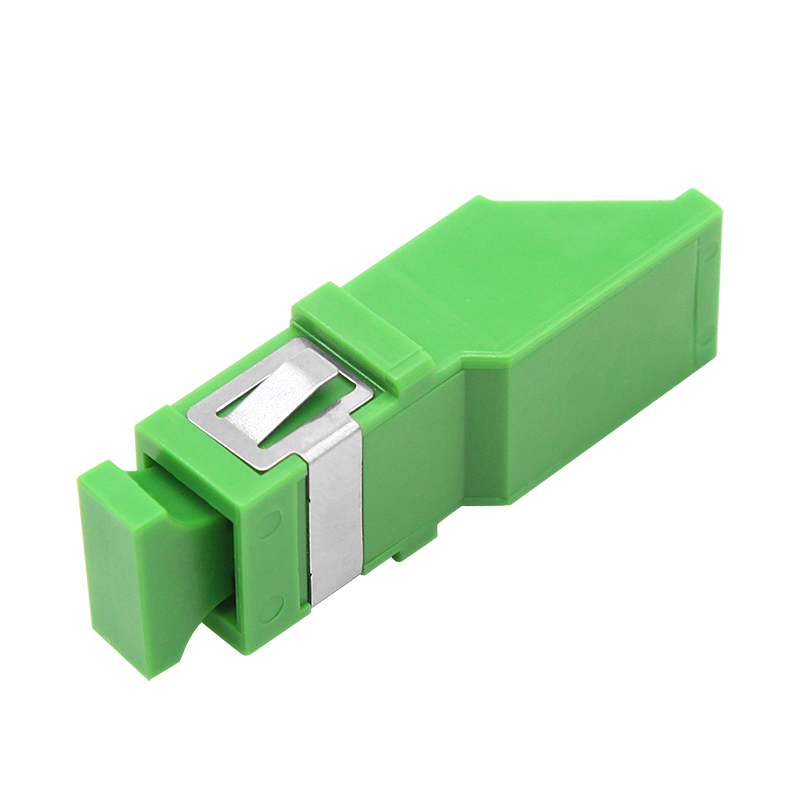

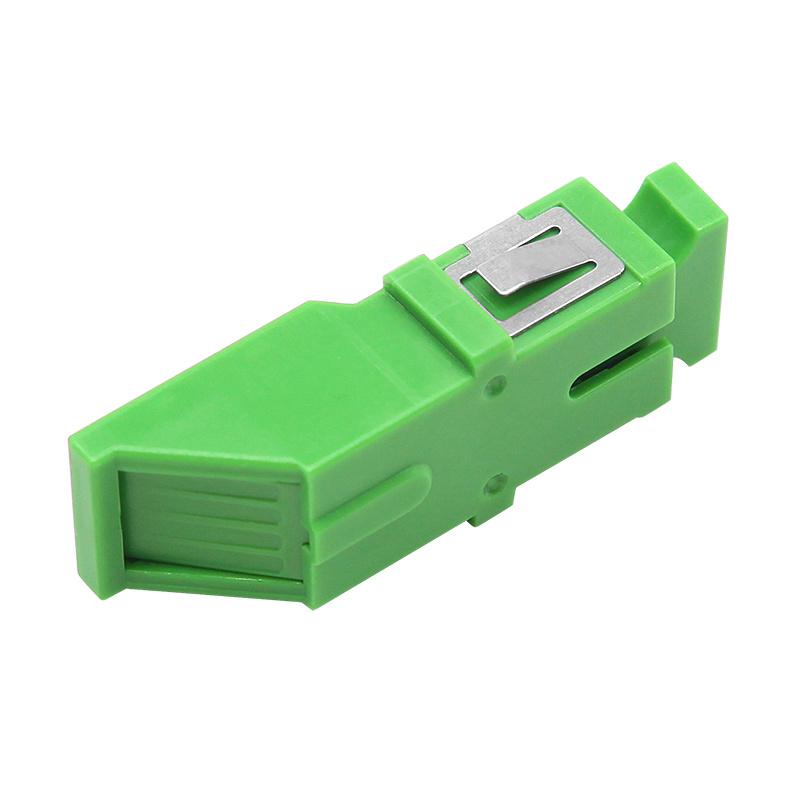

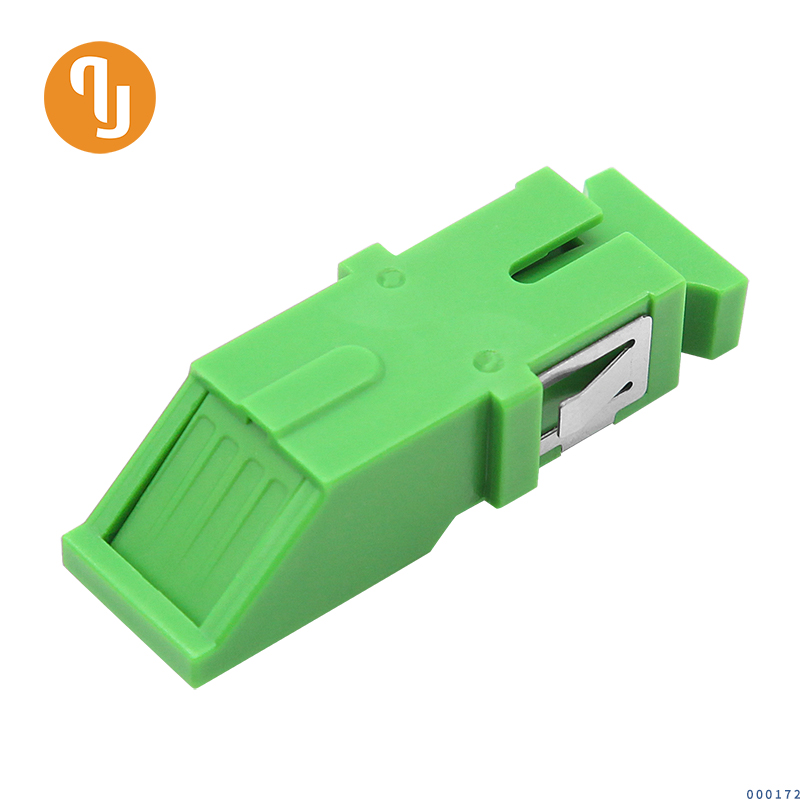

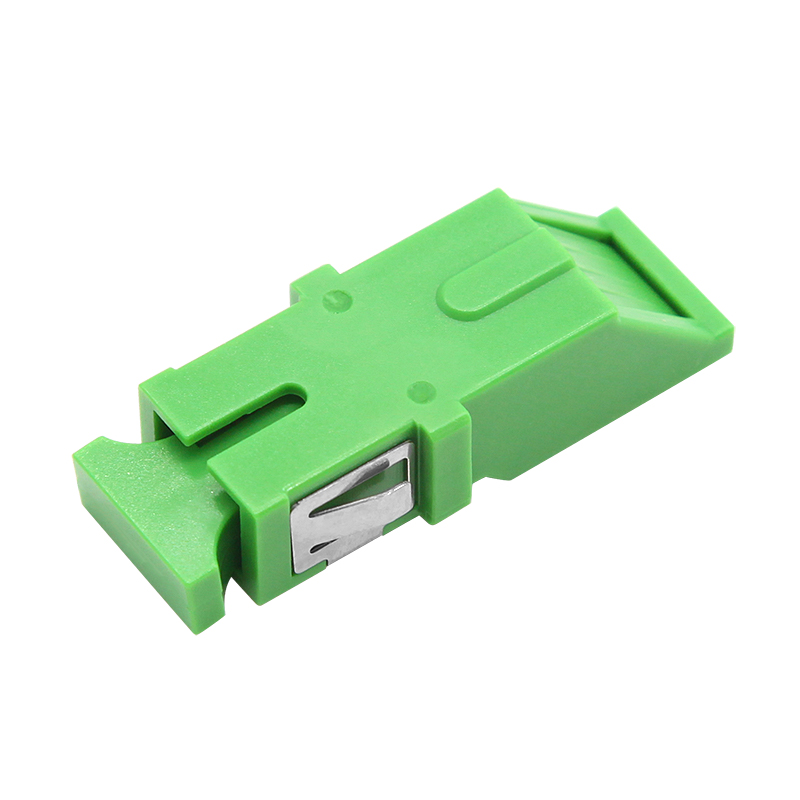

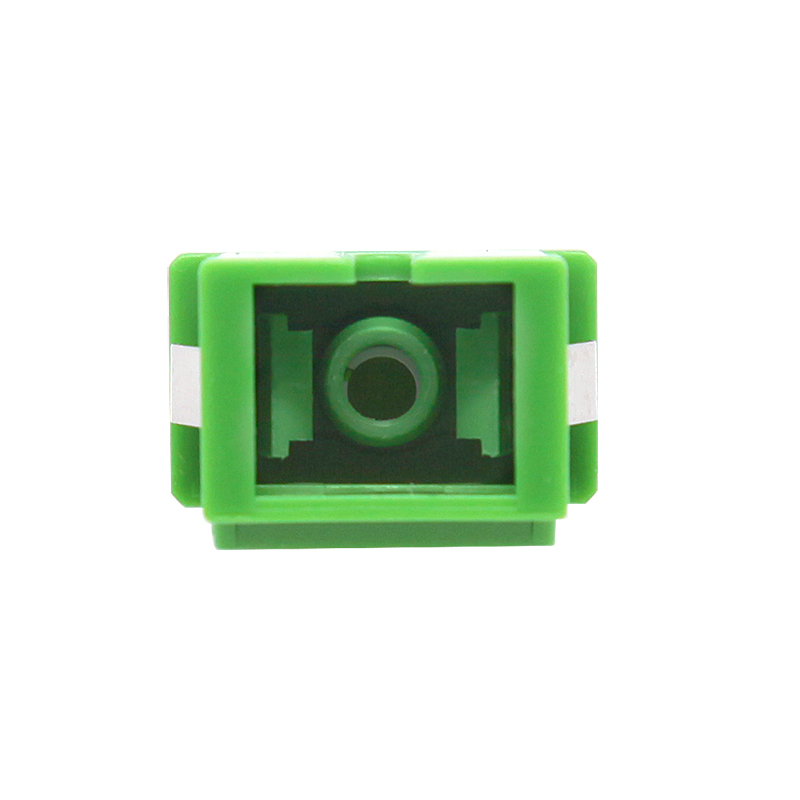

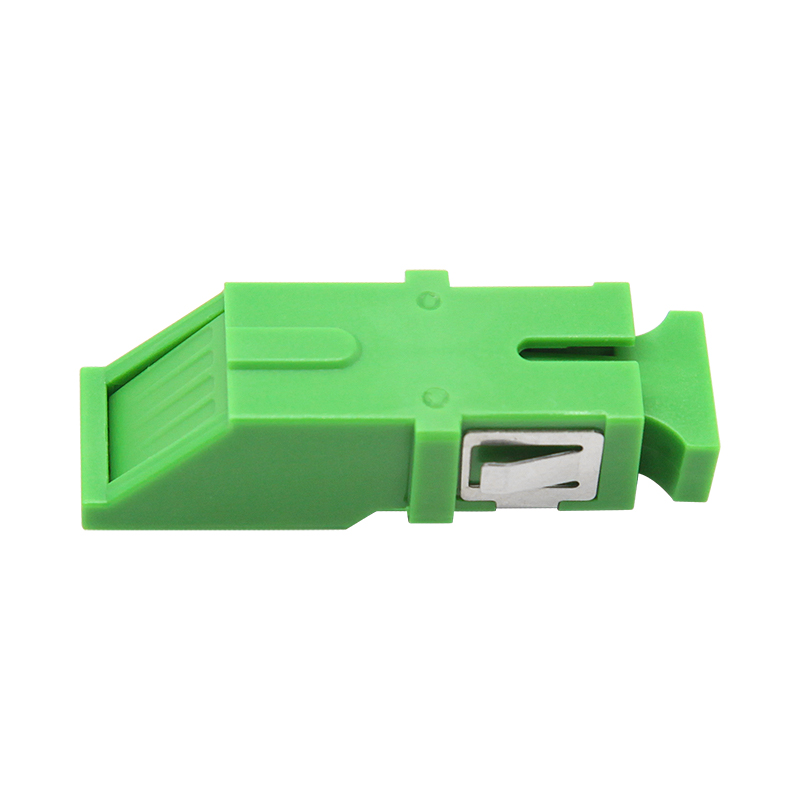

QADSCs-028-APC single modesc female to st female duplex fiber optic adapter

Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.

They are available for use with either singlemode or multimode patch cables.

Feature:

1, LC/SC/FC/ST Type Optional

2, UPC or APC Optional

2, SM or MM Optional

3, With/Without flange Optional

4, Simplex , Duplex or Quad Optional

5, Zirconia Sleeve ,Compact design

6, Low insertional loss, High return loss

7, Comply with IEC, Telcordia GR 326 and JIS standard

Application:

CATV

Telecommunication networks

Test equipment

Local Area Networks(LANs)

Data processing networks

Specification

Parameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC- ST, FC-SC, FC-LC, FC-MU
		SM			MM
		PC	UPC	APC	PC
Insertion Loss (Typical)	dB	≤0.2	≤0.2	≤0.2	≤0.2
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	°C	-40~75
Storage Temperature	°C	-45~85
