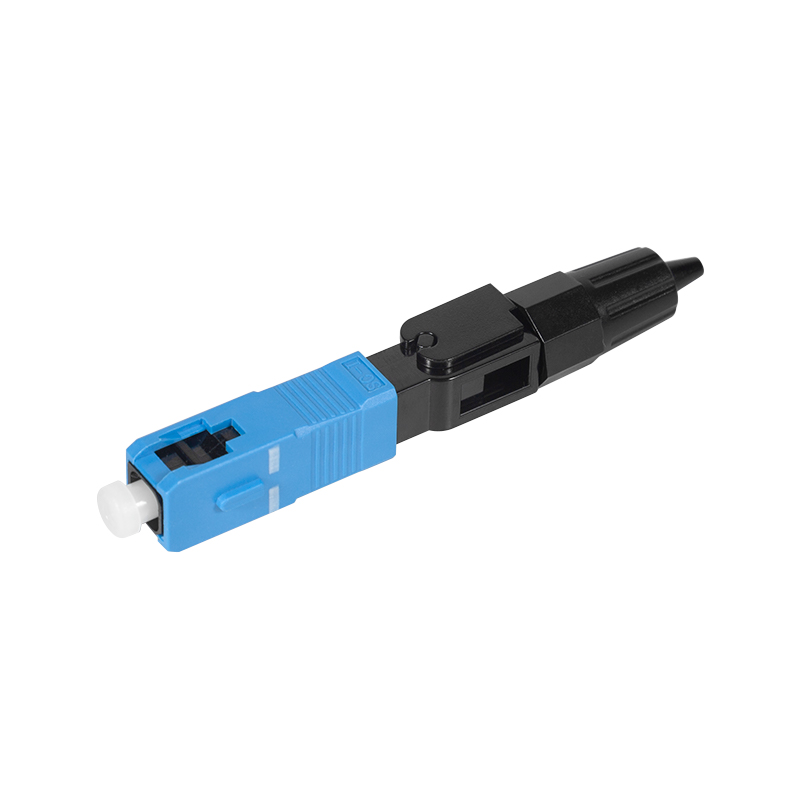

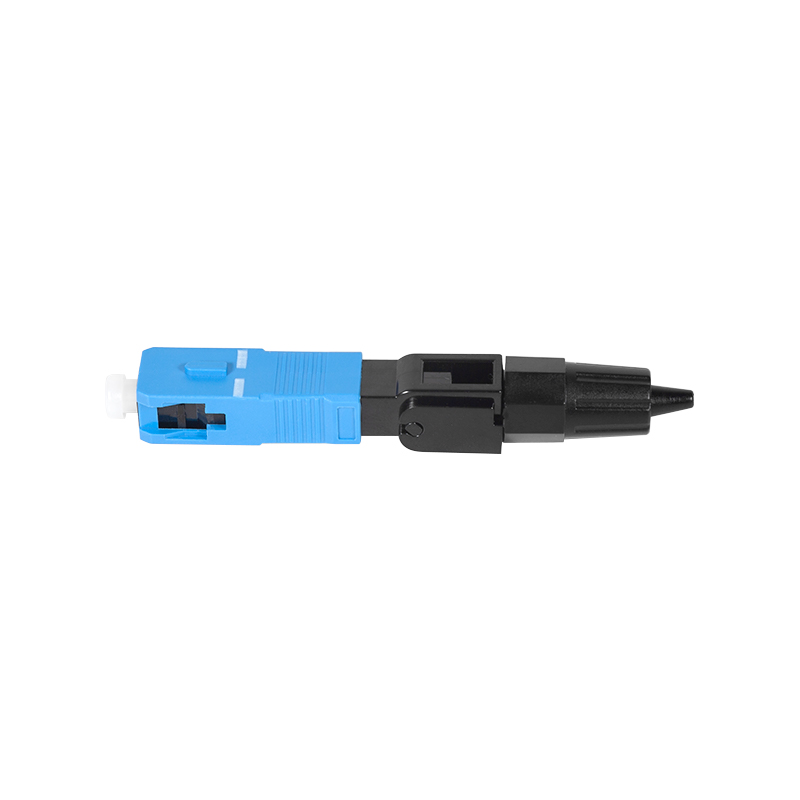

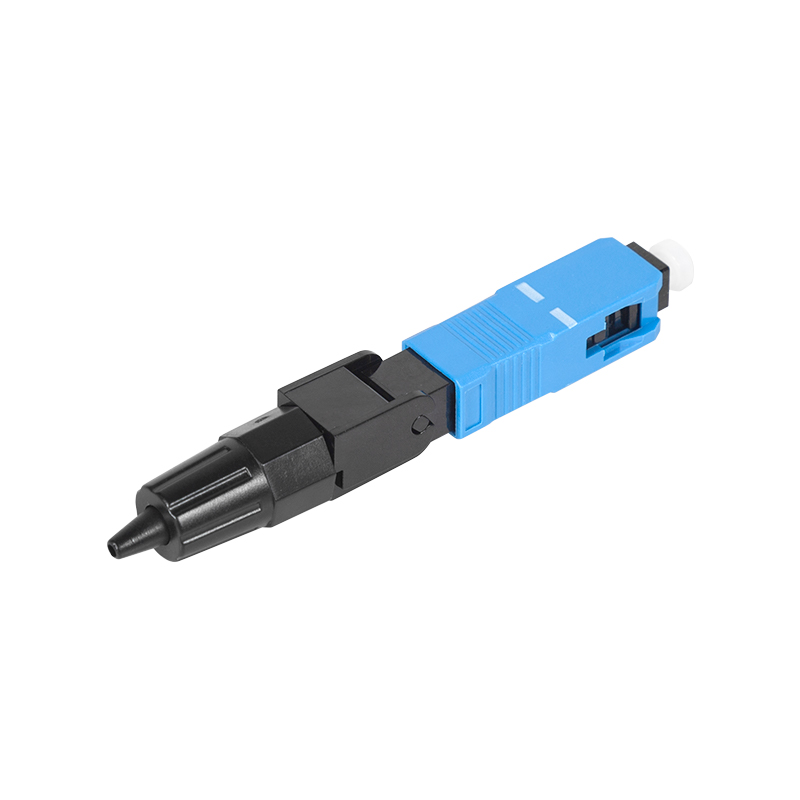

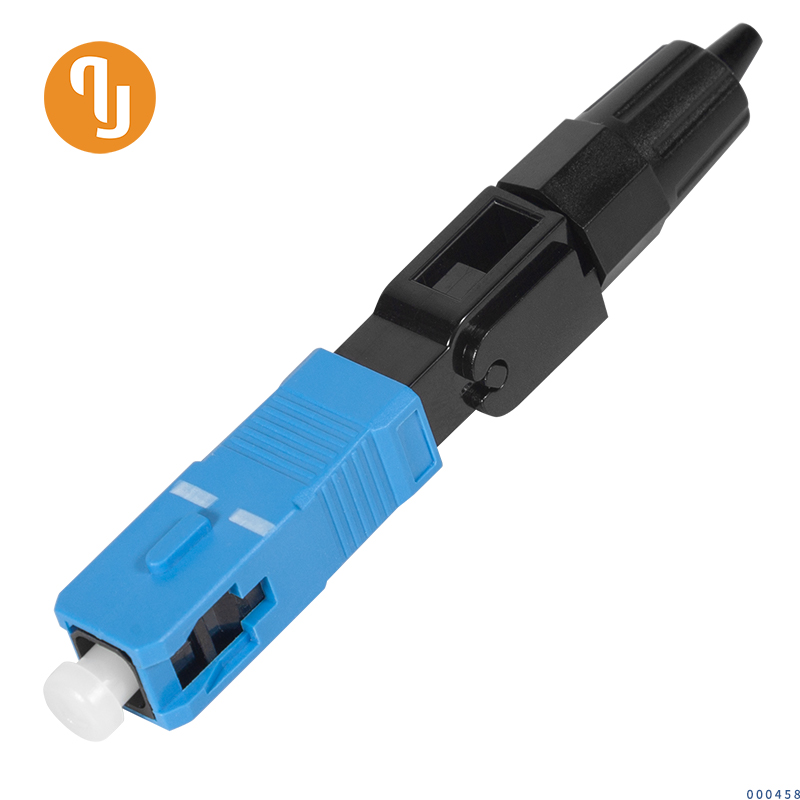

QSC60K1-UPC-0.9_Machanical Fiber Optic Fast Connector SC UPC APC Quick Connector FTTH Drop Cable / Sc Fast Connector
Base specification
Product details
QSC60K1-UPC/APC-0.9mm
SC Fiber Optic Fast Connector Field Assembly Connector
Product Features

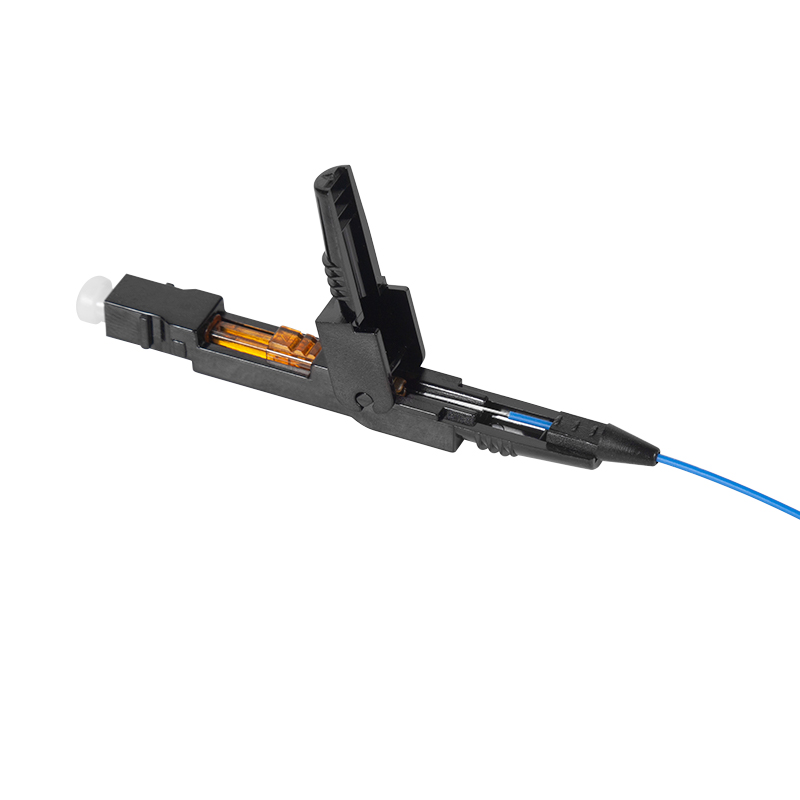

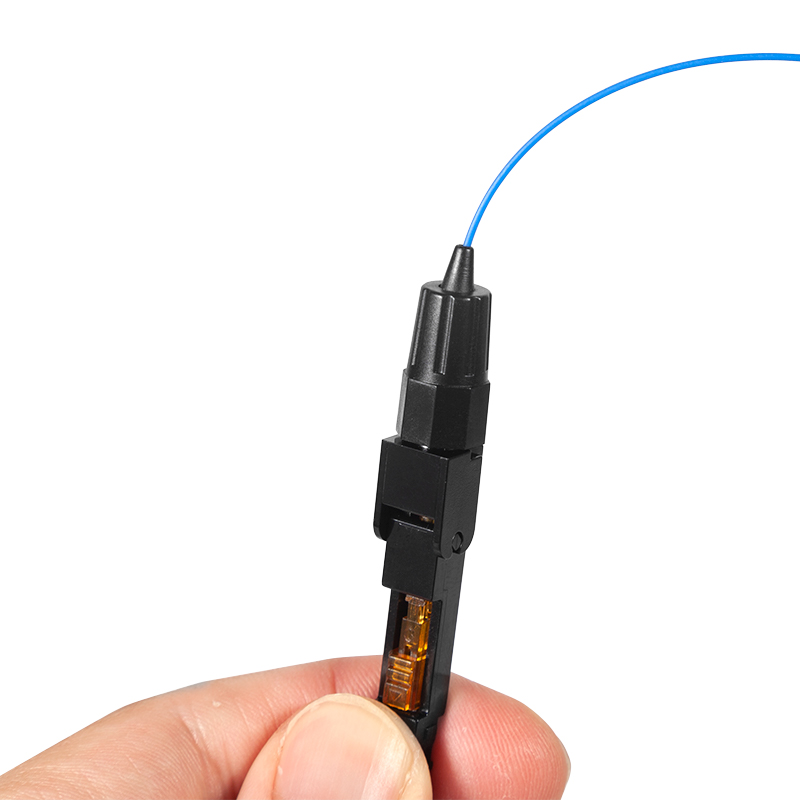

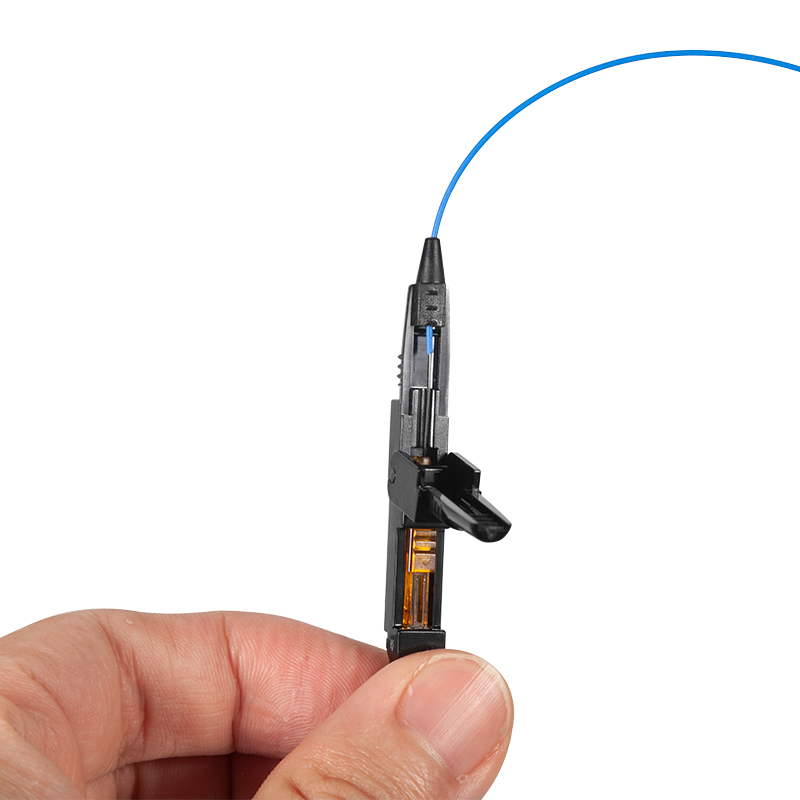

1.Advantage: By using an additional 0.9 holder, extend the original 3x2mm drop to a 0.9mm buffered cable.
2.Features: Low insertion loss, low operating cost, good maintainability, fast installation speed, and reusability
3.Materials: The fiber optic clamping mechanism is made of alloy plastic PEI, which has extremely low temperature deformation and long-term clamping creep deformation. Other plastics are PBT and PE, which are environmentally friendly. The product is suitable for low cold and high heat environments
4.Scope of application
Intelligent high-speed broadband application, security monitoring system, fiber optic home, broadband campus network, broadband cable TV, community fiber to the building, intelligent TV
5.Technical Specifications
|
Items |
Parameters |
|
IL |
≤0.3dB, MAX0.5dB |
|
RL |
UPC≥50dB；APC≥60dB |
|
Assemble time |
≤3mins, average |
|
Assemble pass rate |
≥95% |
|
Assemble repeat time |
≥5 |
|
Tension |
0.9mm buffered cable 7N/2mins, Drop cable 50N/2mins |
|
Cable |
0.9mm buffered cable & 3.0x2.0mm Drop cable |
|
Embedded fiber |
G657A1, or OEM G652D, MM62.5/125, MM50/125, OM3, OM4 |
|
Work temperature |
-25~+75°C or -40~+85°C |
|
Storage temperature |
-40~+85°C |
|
Fire resistance |
UL 94-V0 or as customer required |
|
Environment |
RoHS |
|
Accessories |
Guide part, use to guide the stripped length, cleave length (on fiber cleaver), and Operating Manual |
6.Warranty and Services
• 100% tested in factory
• 1-year warranty, lifetime technical support
