Product presentation

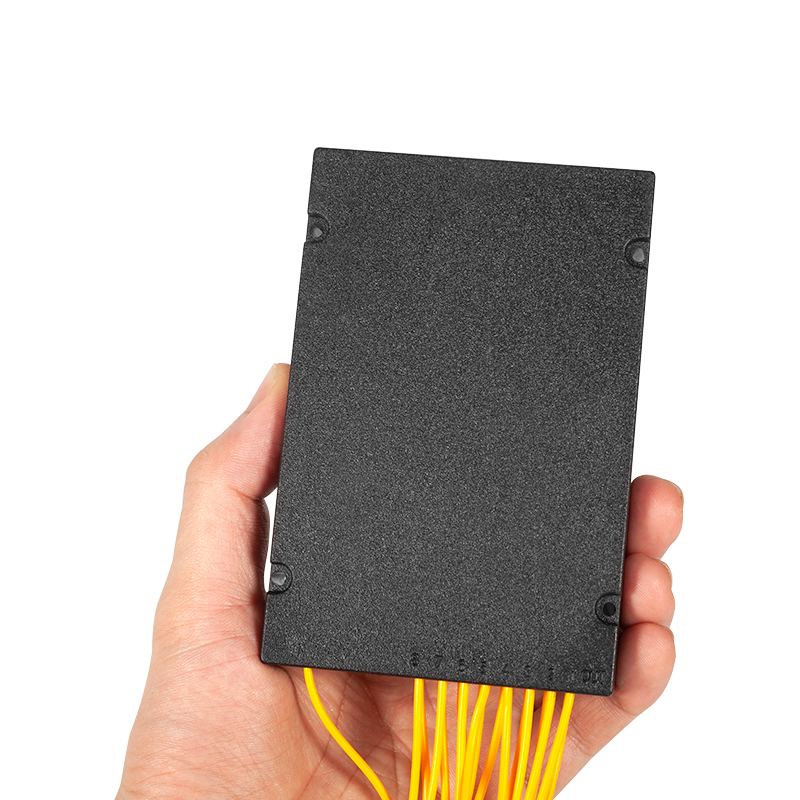

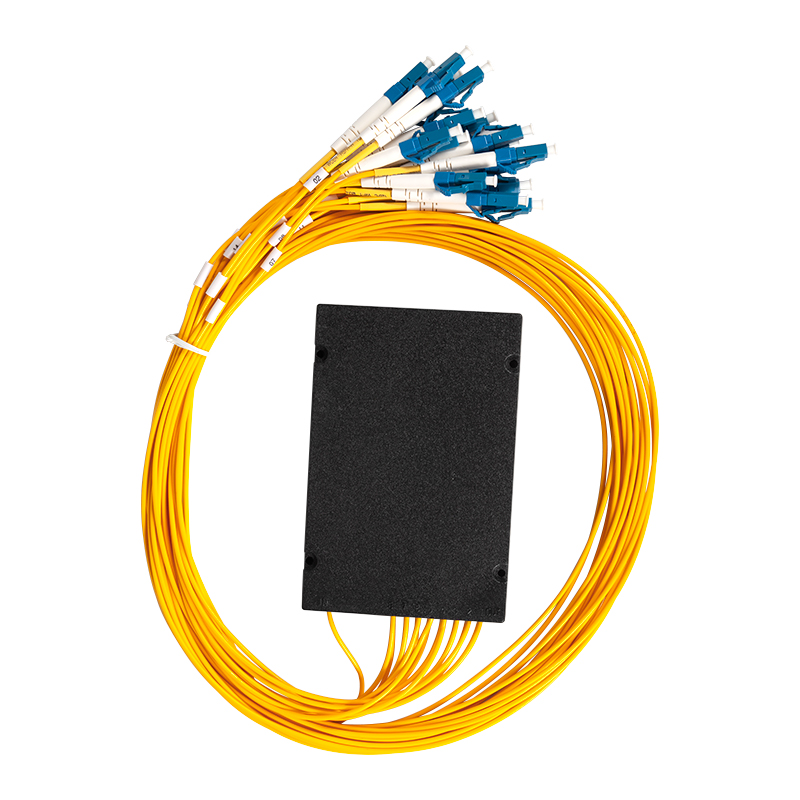

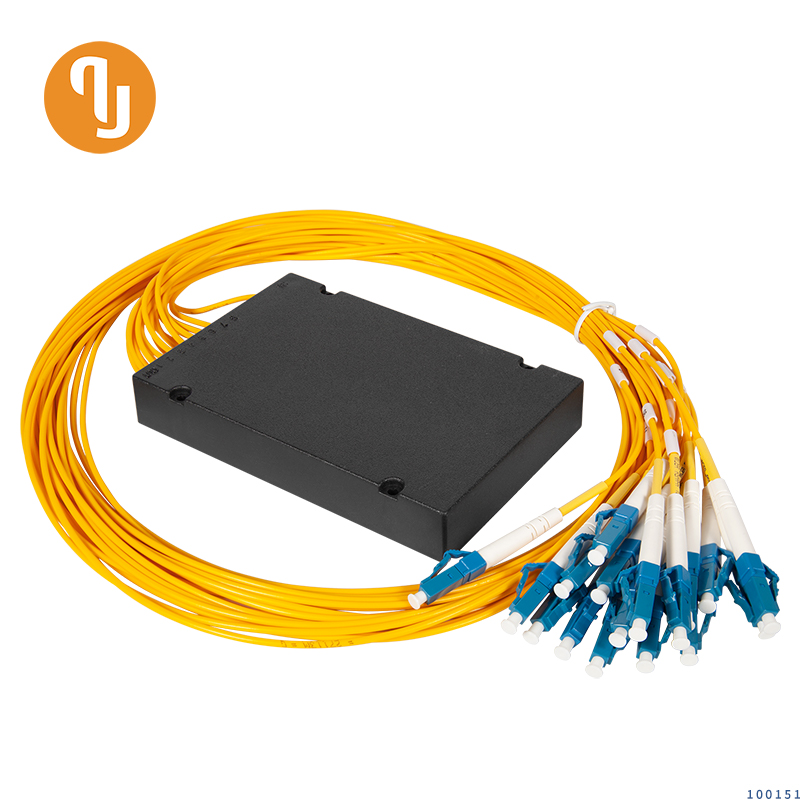

Singlemode G657A cable Optical PLC Splitter 1x16 plc splitter ABS type PLC fiber optic splitter box
Base specification
Product details
Product Specification

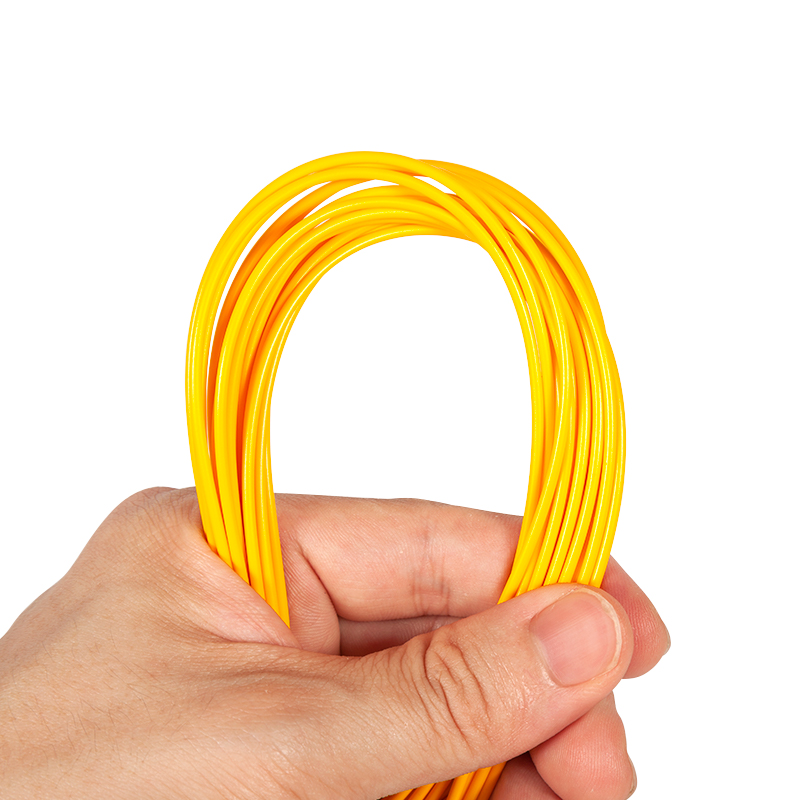

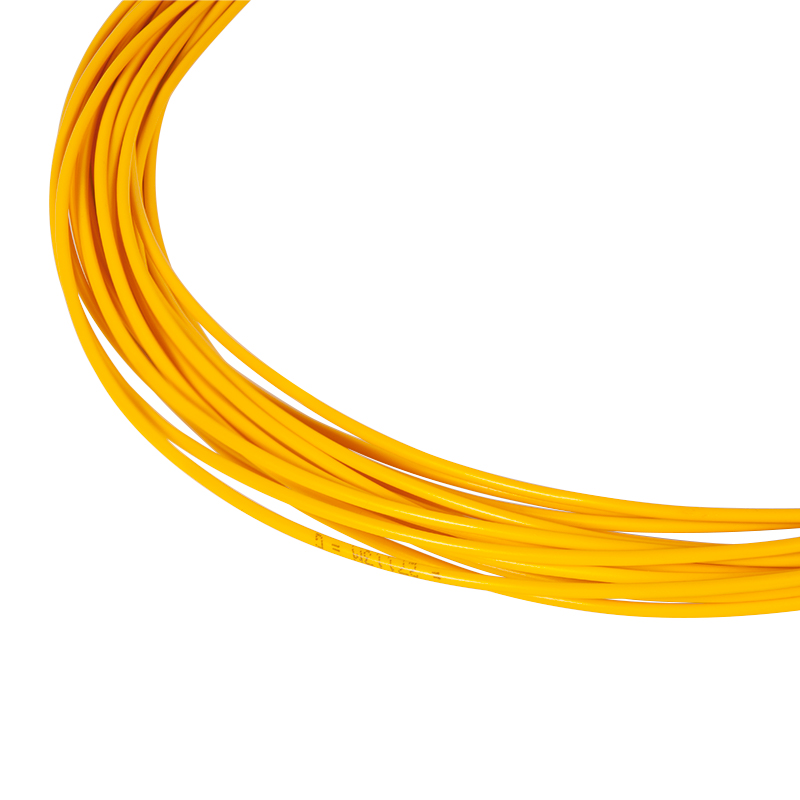

| Cable | 0.9mm/ 2.0mm /3.0mm | Place of Origin | Dongguan |

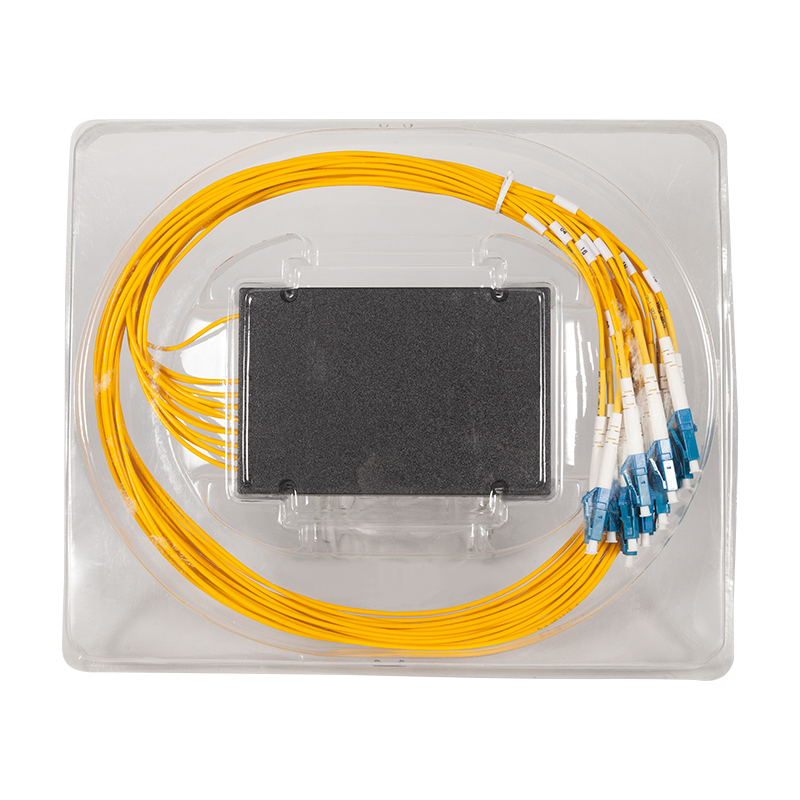

| Packaging Details | PE bag or customized package & cartons | Mode | single mode or multimode |
| length | 1m，1.5m，2m，3m or Customer | Model Number | PLC-S-2*N*0.9,2.0,3.0-SC/UPC-1m |
| Supply Ability | 2000pcsper day | Test the wavelength | 1310&1490&1550 |
| Certification | IEC 60794-2-10/12 | Name | optic fiber PLC splitter ABX BOX |
| Brand Name | QY-SP0528 | Payment Terms | L/C, T/T, Western Union |

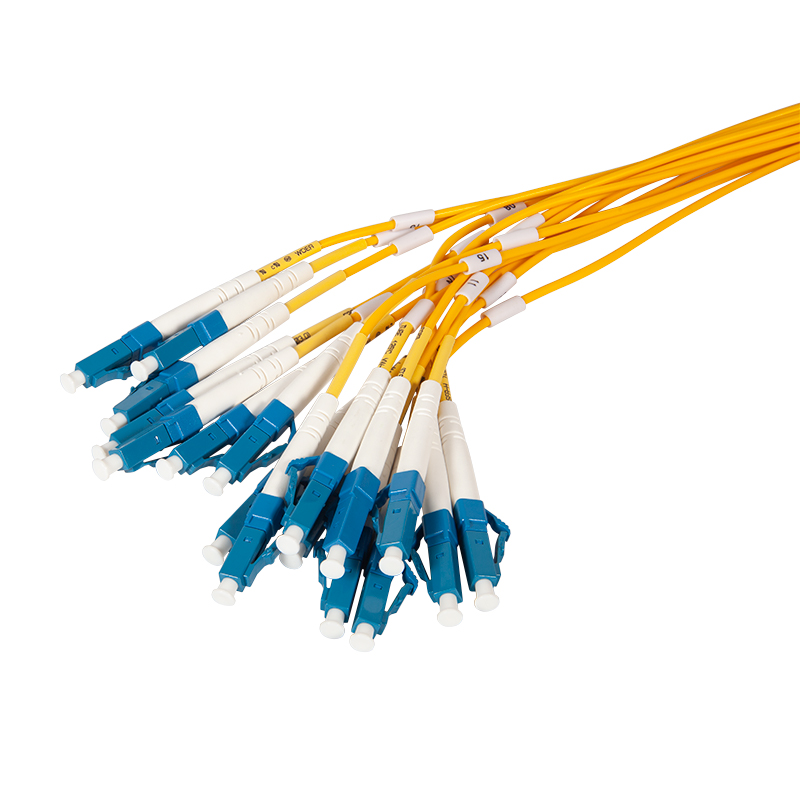

| Connectors | SC/LC/FC/ST /MTRJ/MPO or Other | diameter | 0.9mm，2.0mm，3.0mm |
| Price | negotiation | Delivery Time | Shipped in 10 days after payment |
| Length | 1m 2m 3m or Customized | Minimum Order Quantity | 20pcs |
Product Description
Singlemode G657A cable Optical PLC Splitter 1x16 plc splitter ABS type PLC fiber optic splitter box
Product Description

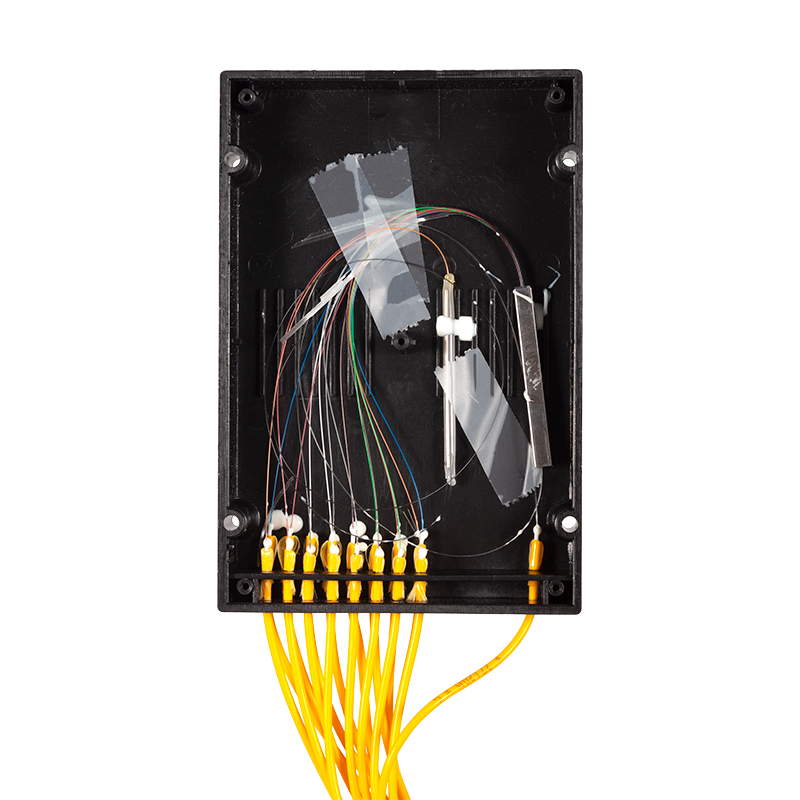

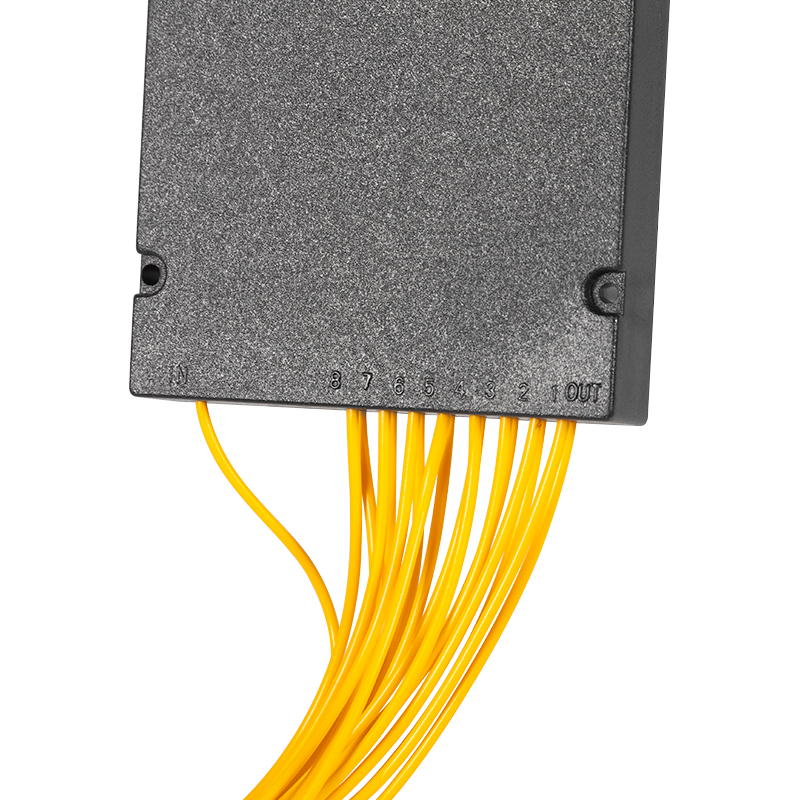

The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.
Outline
| Ports | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Max(P/S) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 |
| Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| PDL (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 |
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Standard Input Fiber | Bend Insensitive SM Single Fiber(ITU G.657A) | ||||||
| Standard Output Fiber | Bend Insensitive SM Ribbon Fiber(ITU G.657A) | ||||||
| Standard Output Color | Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B) | ||||||
| Max. Optical Power(mw) | 300 | ||||||
| Humidity Range(rh) | 5%~85% | ||||||
| Operating Temperature(℃) | -40~+85 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Connector Options | FC/SC/LC/ST/MU | ||||||
| Packaging Options | Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount | ||||||
|
*Telcordia GR-1221-CORE&G-1209-CORE Compliant.
|
|||||||
FAQ
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance aganist copy of BL, Western
Union.
Q 2. how's the delivery time ?
A. usually it will take about 10~15days for production
Q 3. tell me the standard of package?
A. For the small capacity, it uses carton.
