Product presentation
金属轴车
Base specification
Product details
Product Specification
| Place of Origin | Dongguan China | Packaging Details | wooden carton |
| Packing size | 470x380x510mm | Key word | tactical fiber optic cable reel |
| Material | Metal | Model Number | Cable reel-02 |
| Supply Ability | 1000pcs per day | Certification | ISO90012015 |
| MOQ | 1PCS | Name | Cable reel |
| Brand Name | QualitY or QY | Payment Terms | L/C, T/T, Western Union,Paypal |
| Packing | wooden carton | Price | Negotiation |
| Delivery Time | 8-12 working days | Minimum Order Quantity | 1PCS |
| Product size | 416x320x461mm | Cable diameter | 3.0mm 4.8mm 5.0mm |
Product Description

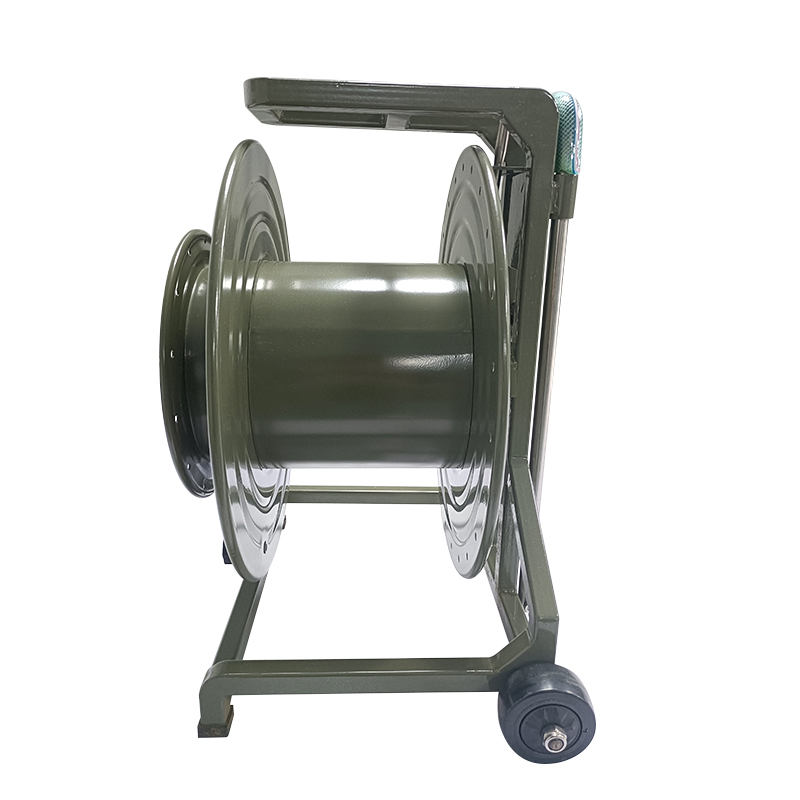

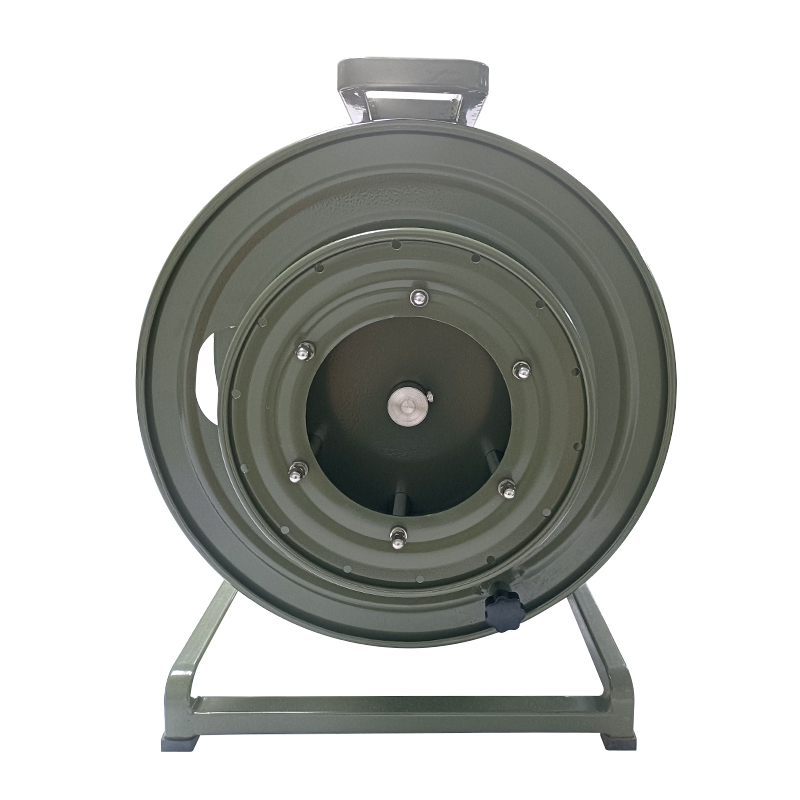

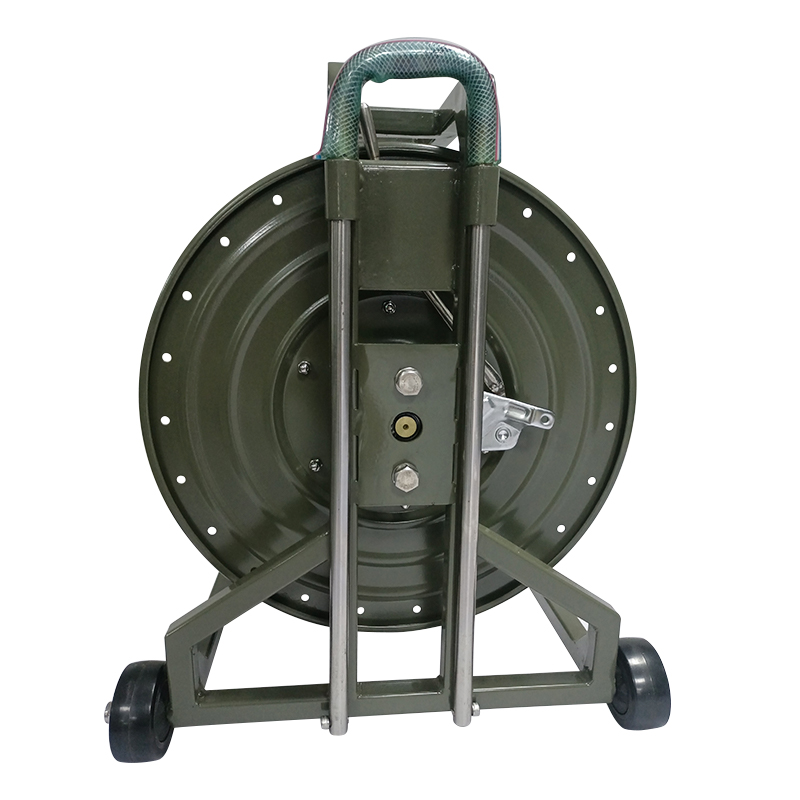

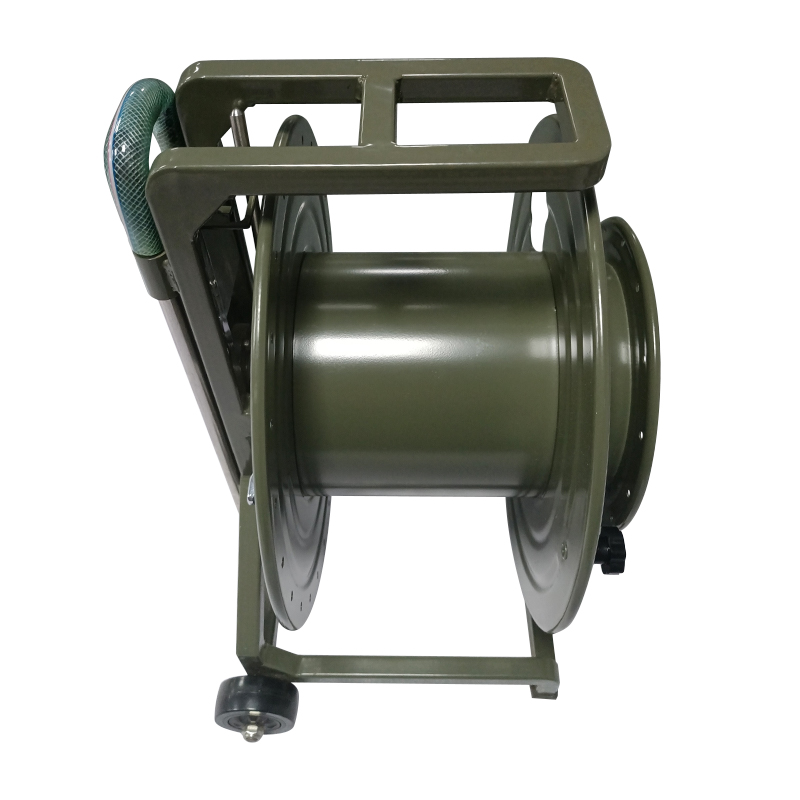

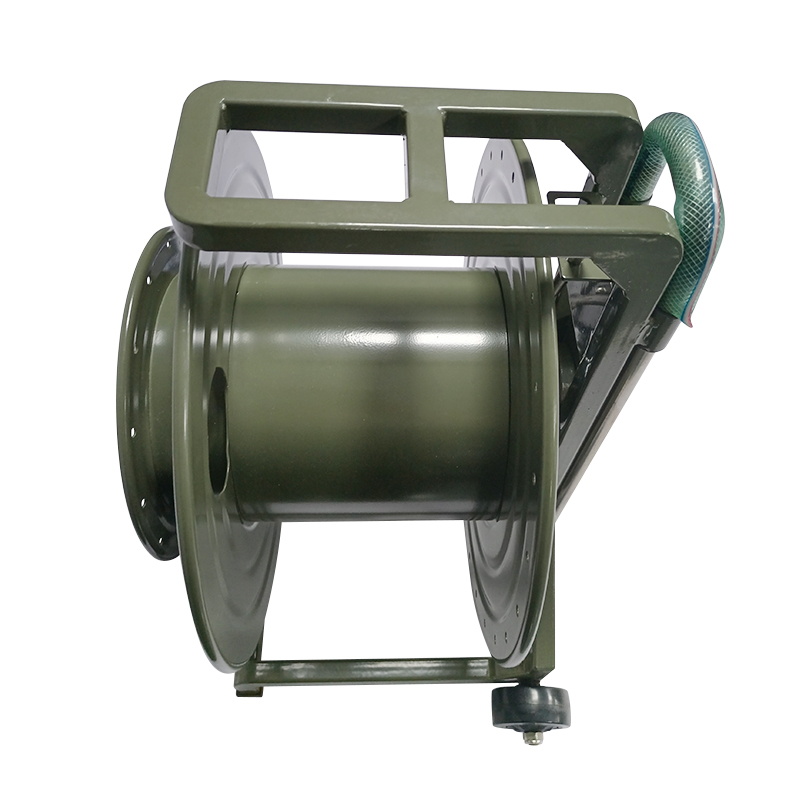

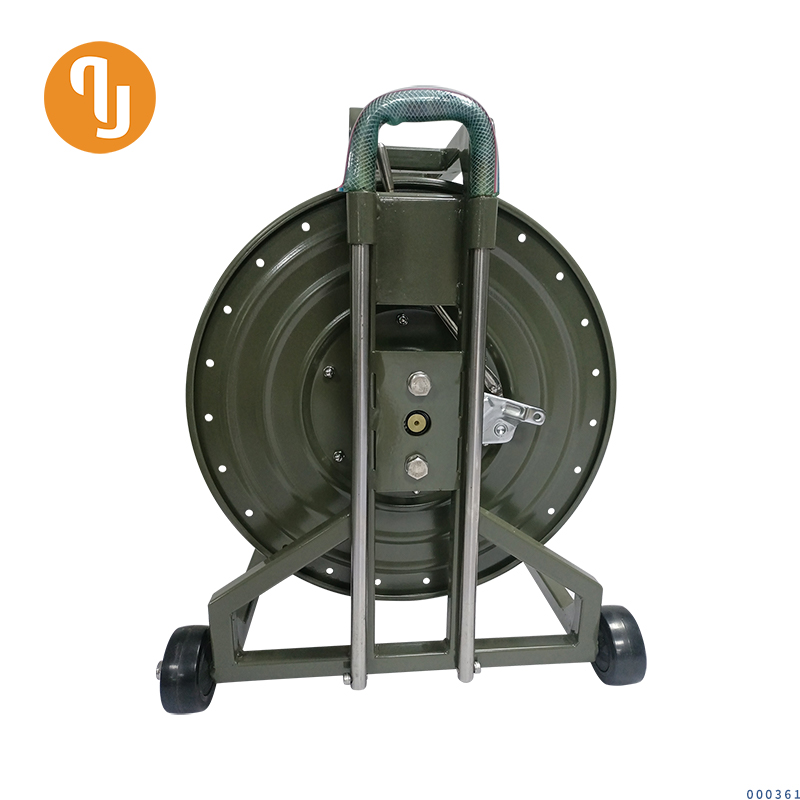

Portable Field Deployable Tactical Fiber Optic Cable Reel For Armoured Cable
Description:
Portable field deployable tactical fiber optic cable reel has been optimized for using in harsh environments where mobility and rapid deployment of the cable are very essential. This assembly is specifically designed for field deployable applications. Particularly, it can broadcast the communication for film crews to connect HDTV camera equipment with central broadcasting trucks about events like music concerts and sporting events. This deployable assembly includes a marcaddy drum, breakout modules with ruggedised tails at each end, choice of connectors, tactical cable and a high durability protective conduit IP rated pulling sock.
Features:
1. Separate connector compartment for secure deployment
2. Rugged design for indoor and outdoor use
3. Highly resistant to shock and abrasion
4. Galvanized Steel Reels are available either in Blue, Olive Drab or Black finish
5. Hand reels & stackable storage reels with slotted divider discs
6. Reels delivered furnished with cable and connectors
7. Custom reel design available
Specification
| Product size | 480*360*580mm | |||||||
| Packing size | 560*420*600 wooden | |||||||
| Gross weight | 21kg | |||||||
| Net weight | 14kg | |||||||
| Material | Metal | |||||||
| Cable diameter | 3.0mm | 4.0mm | 5.0mm | 6.0mm | 7.0mm | 8.0mm | 9.0mm | 10.0mm |
| Capacity | 1800m | 1000m | 600m | 450m | 320m | 250m | 200m | 160m |
Application:
1. Military communication system
2. Passive optical networks (PON)
3. Coal, oil, natural gas, geological exploration
4. Broadcast television, temporary communication and so on.
