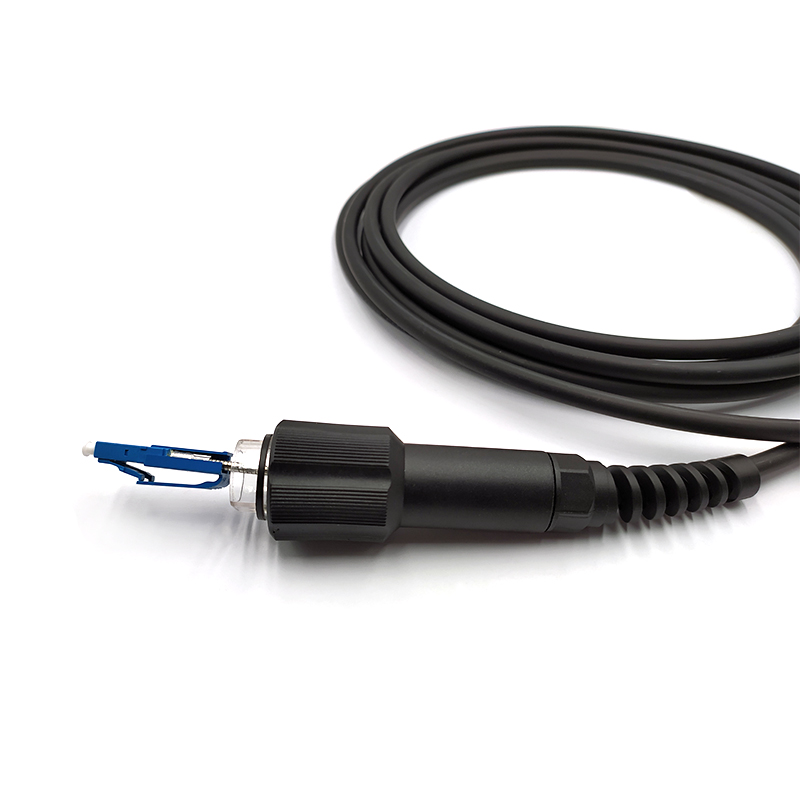

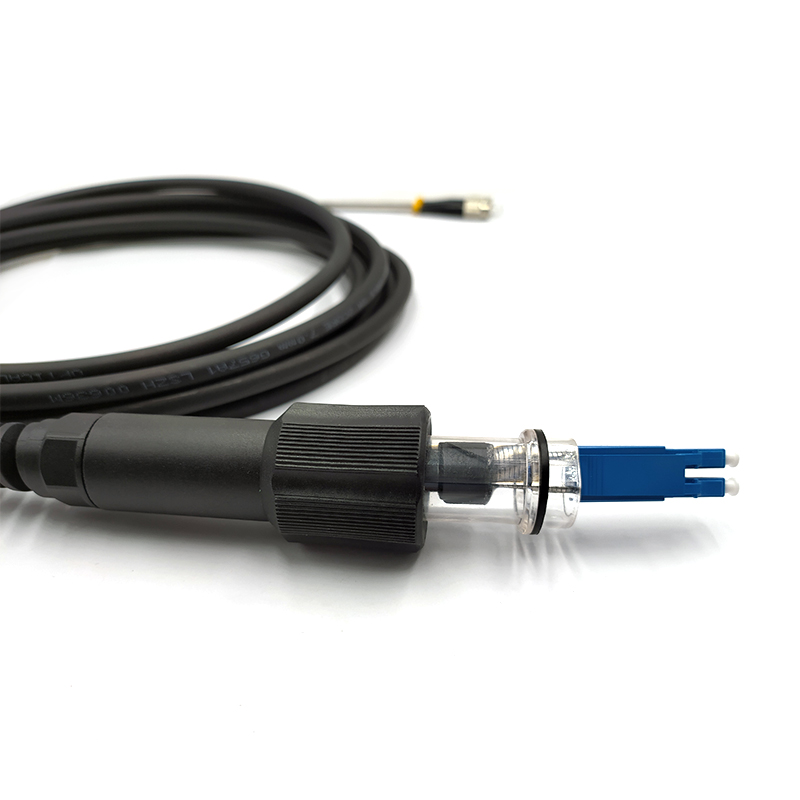

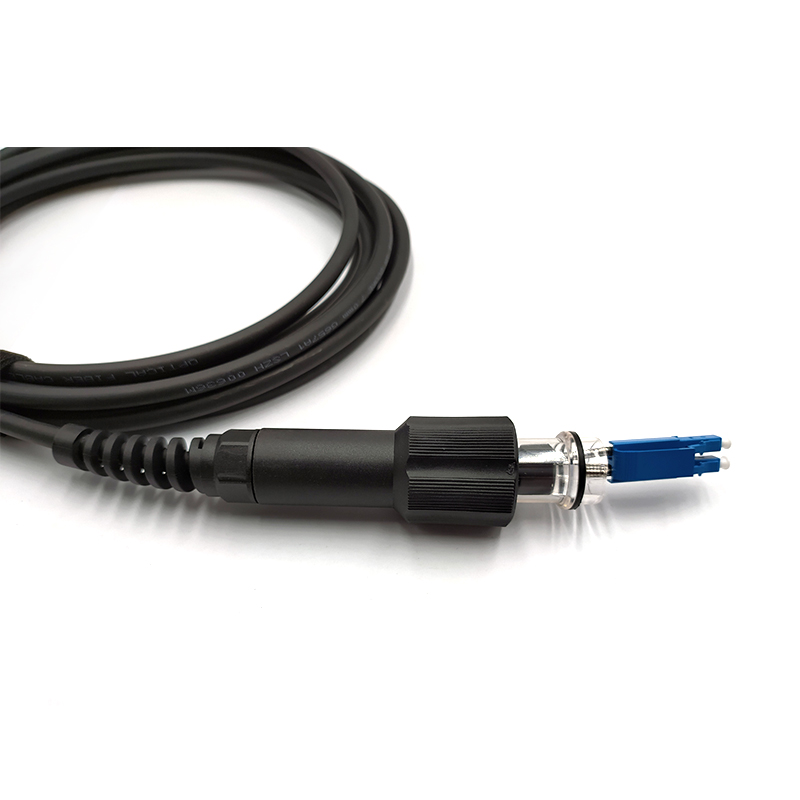

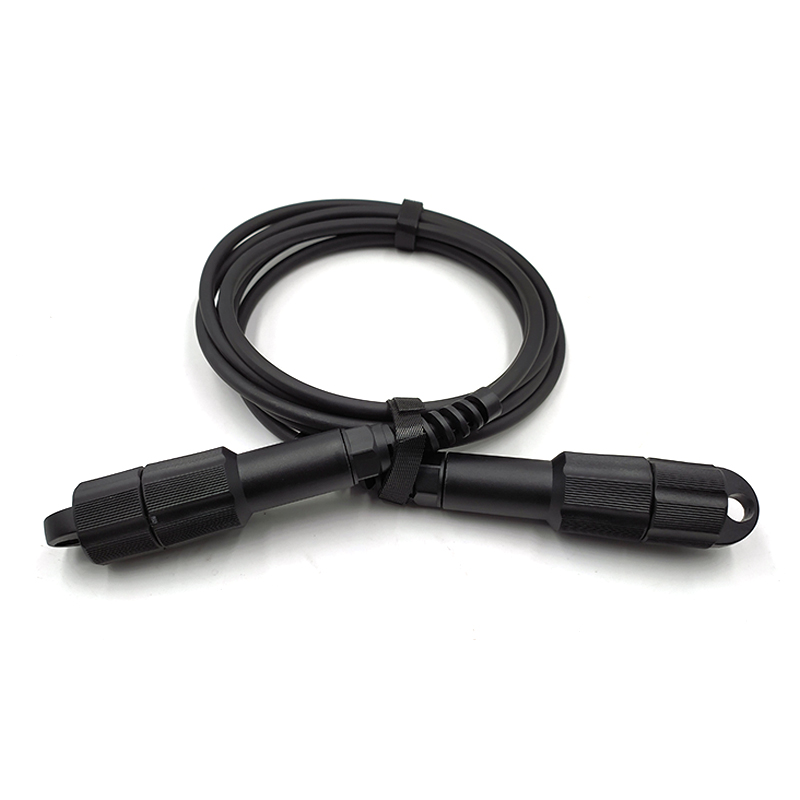

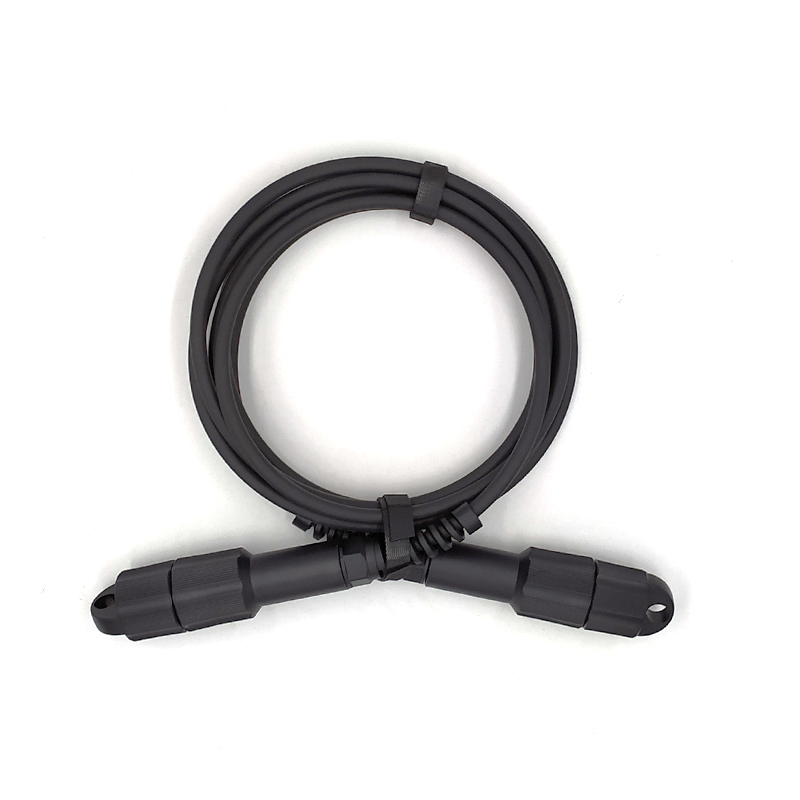

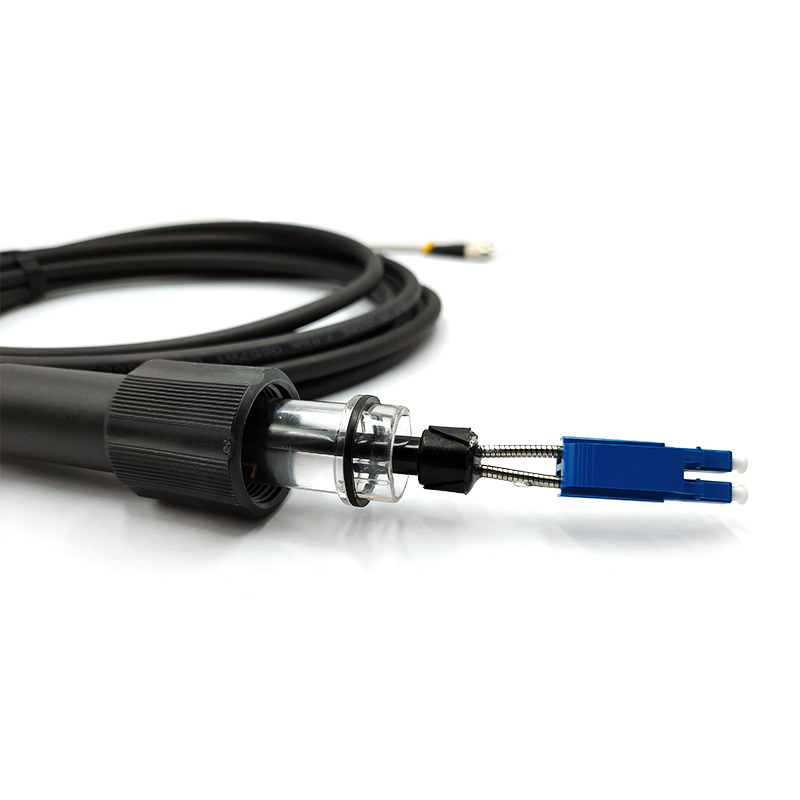

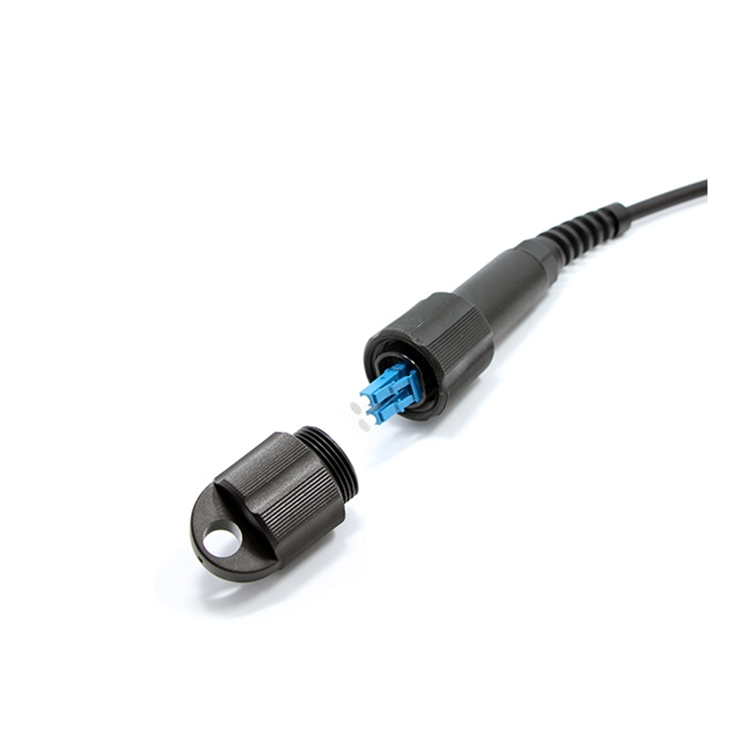

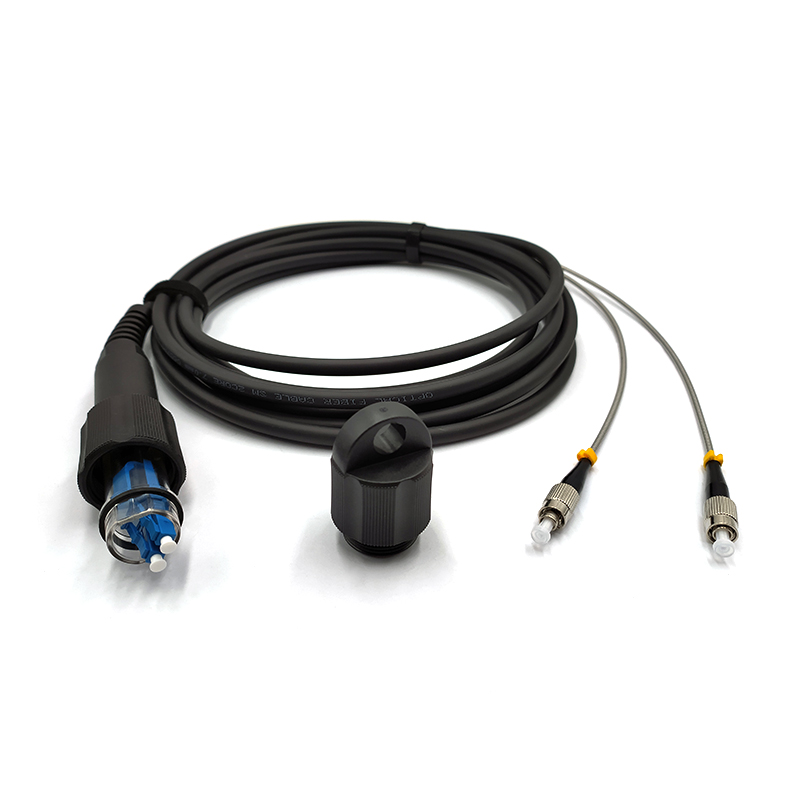

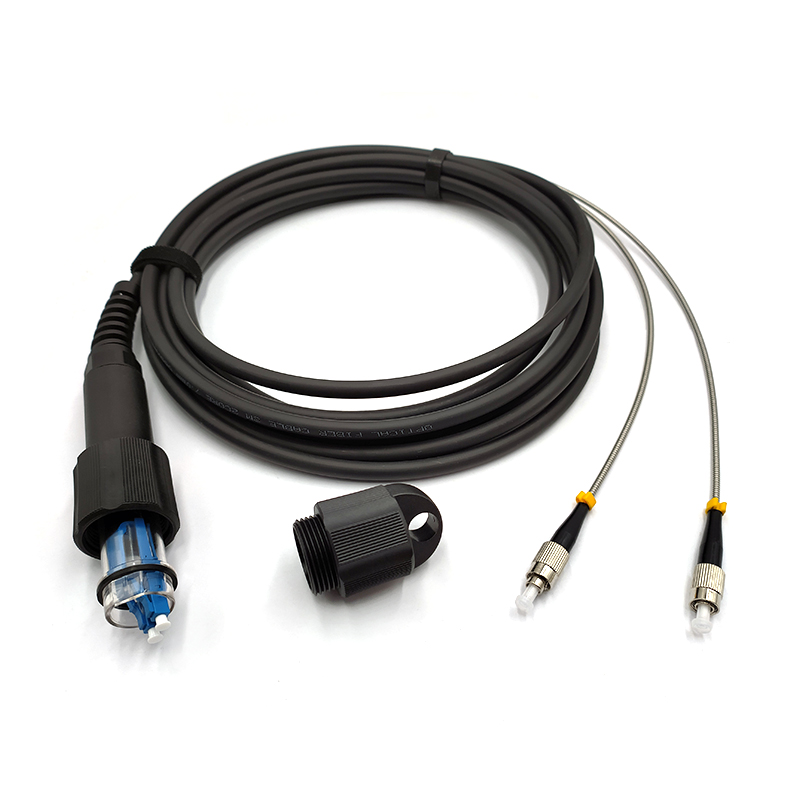

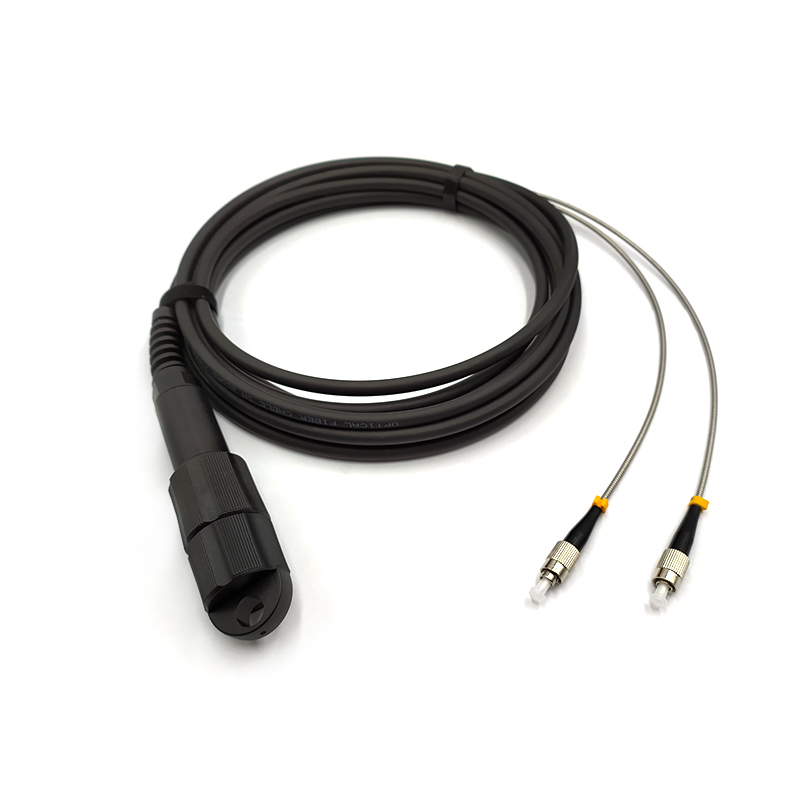

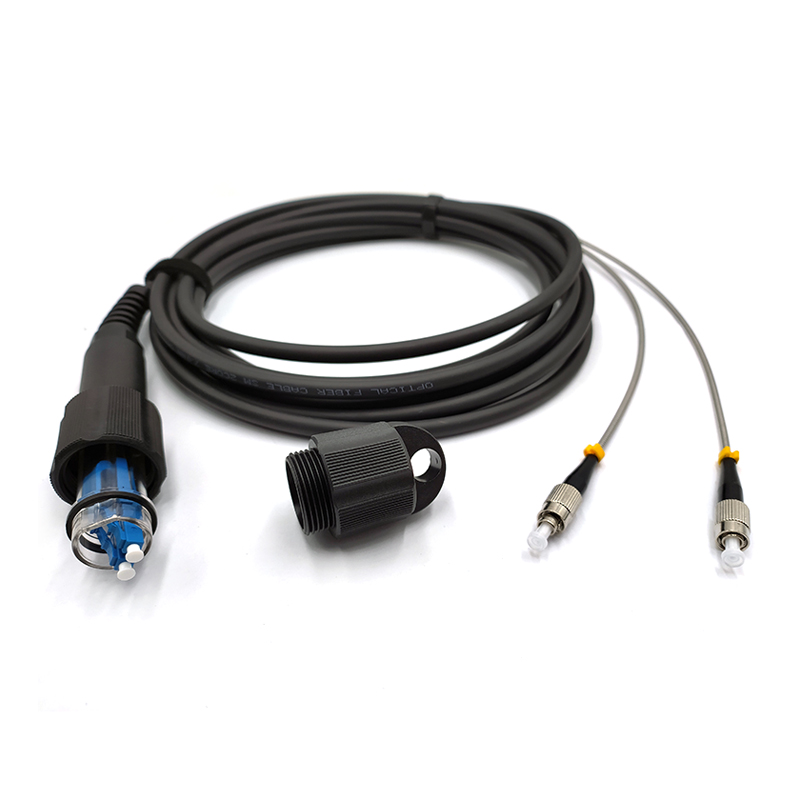

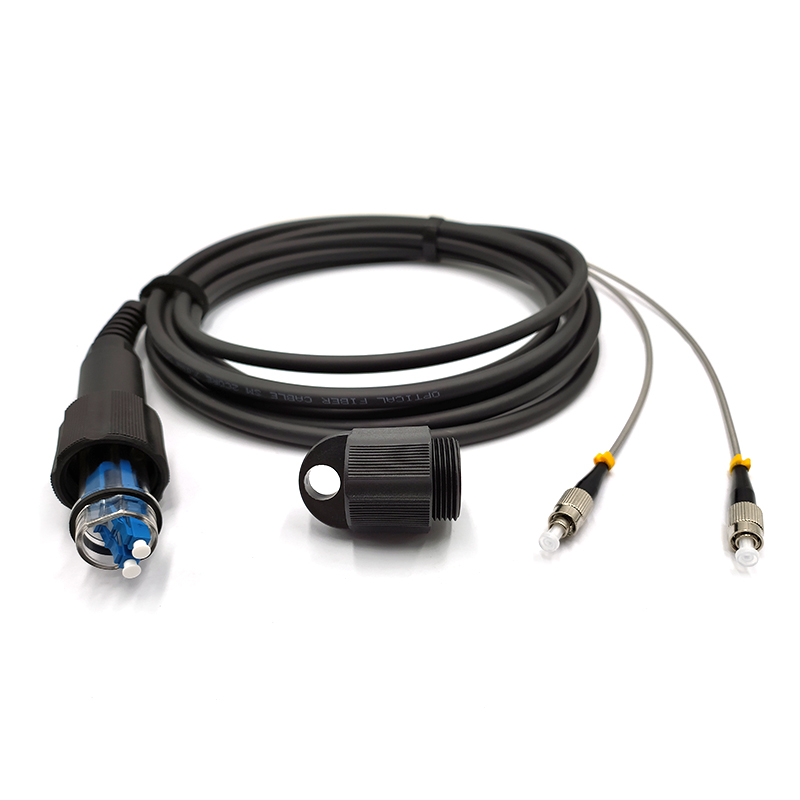

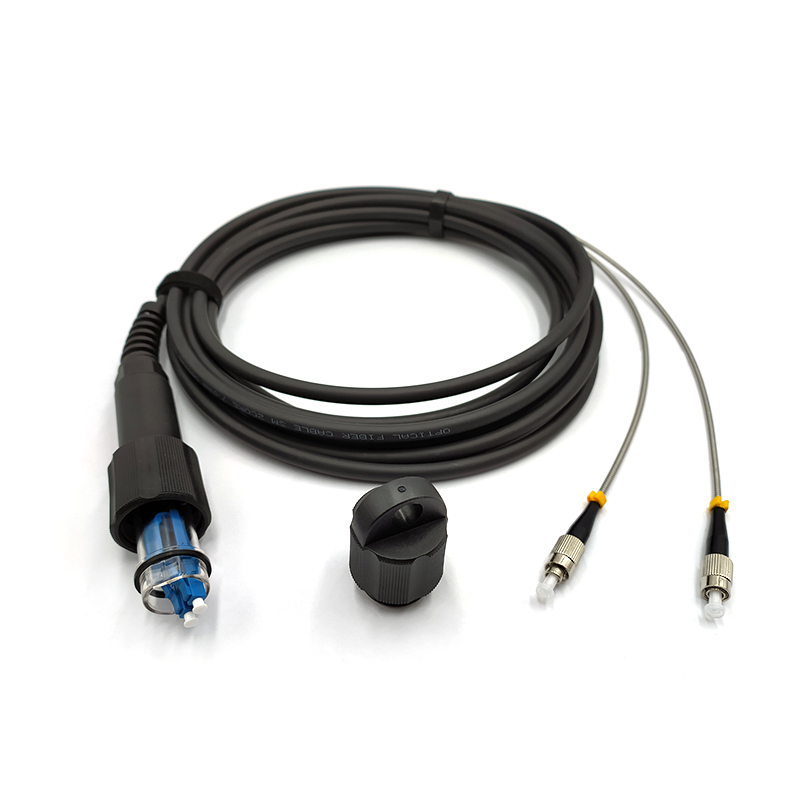

PLDC IP67 Waterproof Fiber Optic Patch Cord
Base specification
Product details
|

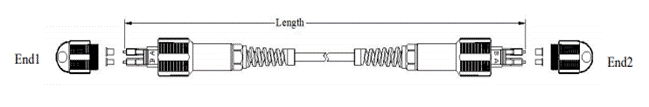

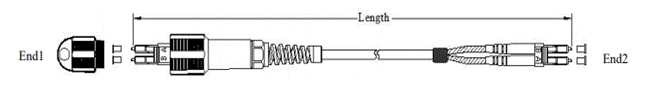

PDLC IP67 Outdoor Waterproof Optic Fiber Patch Cord |
|
|
|
|
|
PDLC-LC/DX |
|
|
|

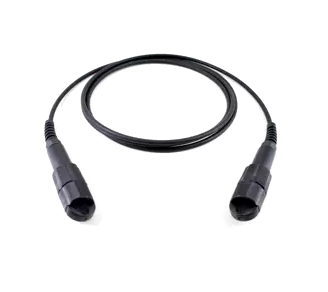

PDLC-PDLC |
|
|
|
Performance: |
|
|
Item |
Data |
|
Insertion Loss |
≤0.3dB |
|
Return Loss |
SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
|
Mechanical life |
500cycles |
|
Working temperature |
-20°C~+70°C |
|
Storage temperature |
-20°C~+70°C |
|
Protection Level |
IP67 |
|
Tensile Data |
Tensile between junction and fiber cable≥100N |
|
Cable Structure: |
|
|
|
|
|

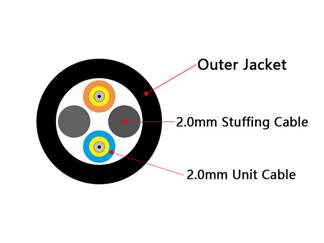

Type1: 2×Unit Cable(2.0mm) +2×Stuffing Cable +Jacket OD=7.0mm |
||||||||
|
Cable Count |
OD (mm) |
Weight |
Tensile strength |
General attenuation |
Minimal Bending radius |
Storage temperature |
||
|
Short term |
Long term |
Single mode |
Multi-mode |
|||||
|
2 |
7.0±0.2 |
45kg |
900N |
450N |
1310nm ≤0.4dB/km |
850nm ≤3.0dB/km |
20D |
-20℃～+70℃ |
|
1550nm ≤0.3dB/km |
1300nm ≤1.0dB/km |
|||||||
|

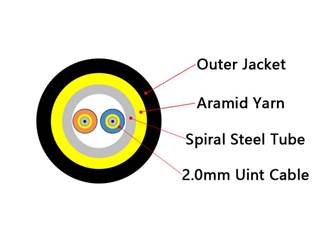

Type2: 2×Unit Cable(2.0mm) +Spiral Steel Tube+ Kevlar +Jacket OD=7.0mm |
||||||||
|
Cable Count |
OD (mm) |
Weight |
Tensile strength |
General attenuation |
Minimal Bending radius |
Storage temperature |
||
|
Short term |
Long term |
Single mode |
Multi-mode |
|||||
|
2 |
7.0±0.2 |
75kg |
2000N |
1000N |
1310nm ≤0.4dB/km |
850nm ≤3.0dB/km |
20D |
-20℃～+70℃ |
|
1550nm ≤0.3dB/km |
1300nm ≤1.0dB/km |
|||||||
