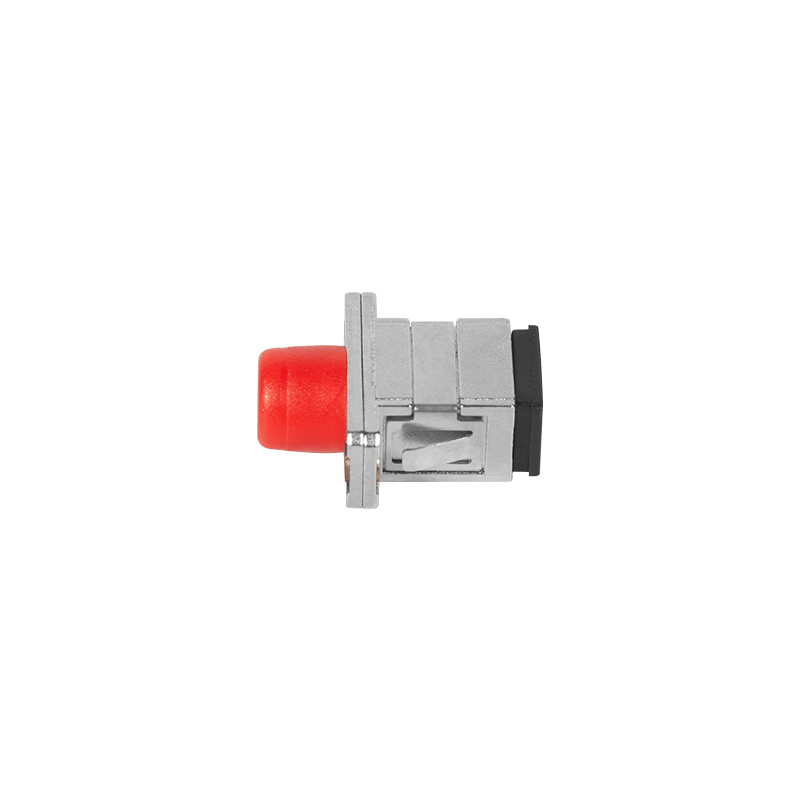

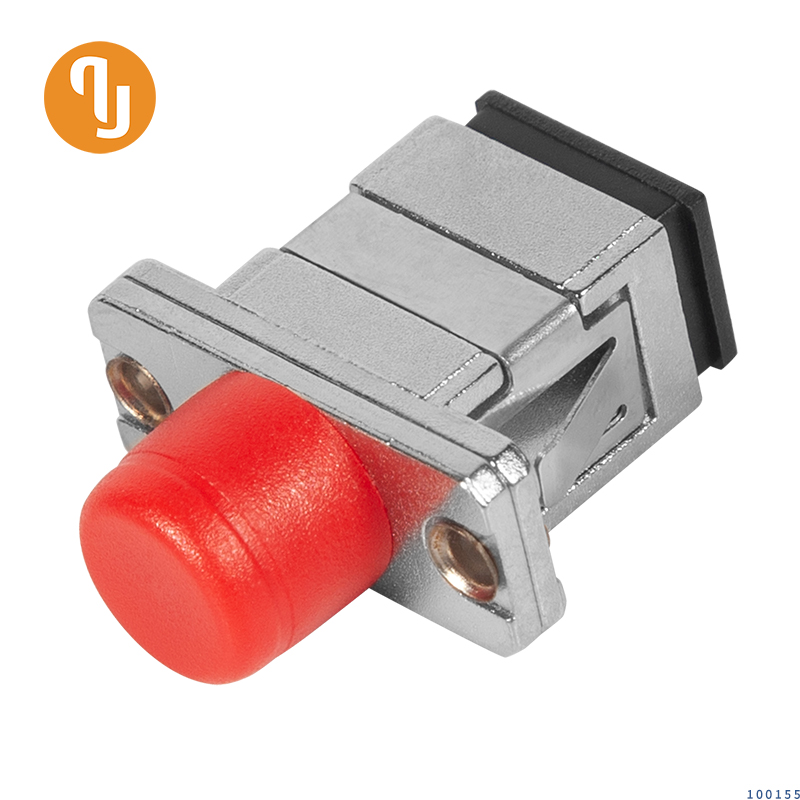

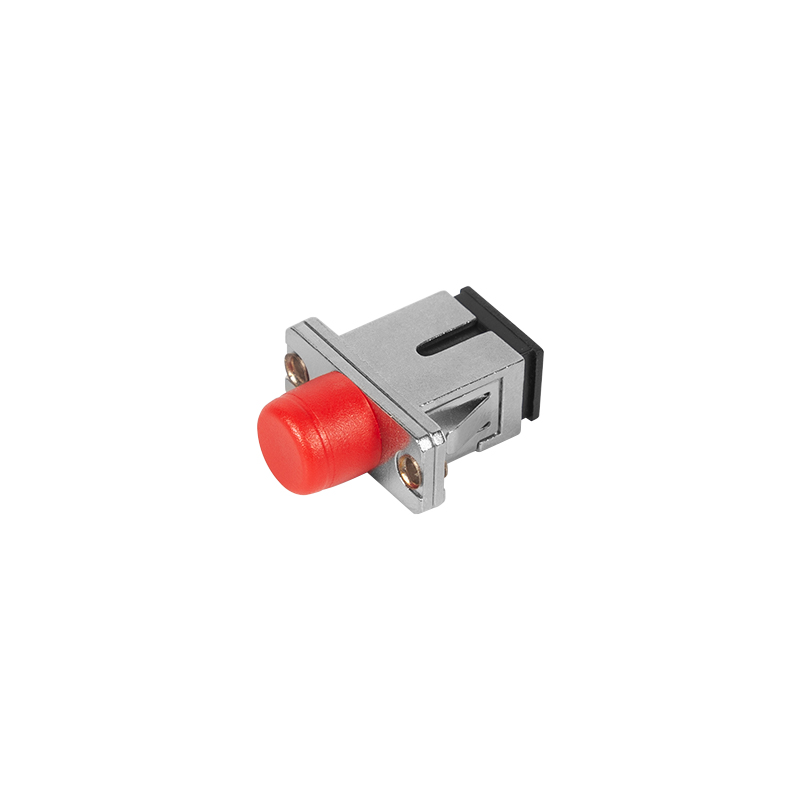

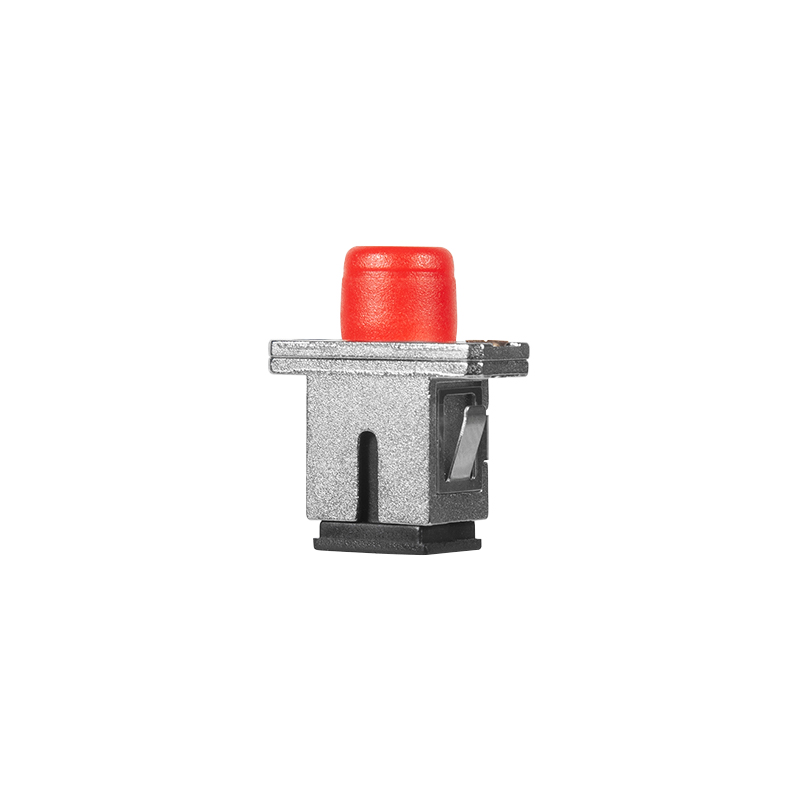

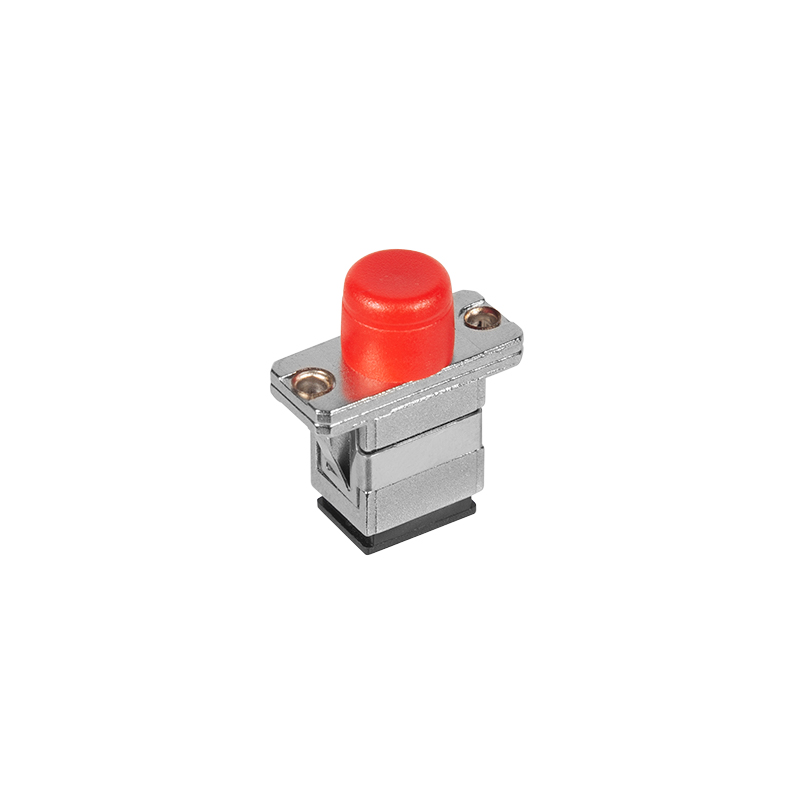

0.2dB Insertion Loss Low Price Optic Fiber Simplex Metal FC-SC Fiber Optic Adapter
0.2dB Insertion Loss Low Price Optic Fiber Simplex Metal FC-SC Fiber Optic Adapter
Hot
Hot
Sales Hotline: qy99@qyftth.com
0 Parameter
Bulk trade. Freight rates will be negotiated separately.
comprehensive qualifications
after-sale guarantee
equitable price
Product presentation
0.2dB Insertion Loss Low Price Optic Fiber Simplex Metal FC-SC Fiber Optic Adapter
Base specification
Product details
Product Specification
| Place of Origin | China Dongguan | Model Numbe | 0.2dB Insertion Loss Low Price Optic Fiber Simplex Metal FC-SC Fiber Optic Adapter |
| Sleeve Material | Zirconia | Packaging Details | PE bag or customized package & cartons |
| Model Number | Supply Ability | 25000pcs per week Optic equipment simplex metal FC-SC Fiber Optic Adapter | |
| Certification | ISO90012015 | Brand Name | Qingying or QY |
| Payment Terms | Western Union, T/T, L/C | Price | usd 0.58~0.99/pcs |
| Delivery Time | 3-7 working days | Connector Type: | Hybrid SC adaptor |
| Channels number: | Simplex,Duplex | Minimum Order Quantity | 20 pcs for minium order |
| Insertion loss: | < 0.2DB | Operation Temperature | -40 ~+75 degree |
| Package Size： | 46 X 33 X 23 CM:(5000PCS) | Durability: | >1000 mating times |
Product Description
0.2dB Insertion Loss Low Price Optic Fiber Simplex Metal FC-SC Fiber Optic Adapter
Description:
The product is an elastic clip structure, which is convenient and quick to connect and easy to install on site. The internal assembly is 100% high quality ceramic (zirconia) sleeve, which has extremely reliable alignment ability, good repeatability and low insertion loss. The structure conforms to the domestic optical fiber industry standard and the international IEC standard; it is suitable for various connection types of optical fiber SC type.
Feature:
1, LC/SC/FC/ST Type Optional
2, UPC or APC Optional
2, SM or MM Optional
3, With/Without flange Optional
4, Simplex , Duplex or Quad Optional
5, Zirconia Sleeve ,Compact design
6, Low insertional loss, High return loss
Application:
-- CATV
-- Telecommunication networks
-- Test equipment
-- Local Area Networks(LANs)
-- Data processing networks
| A adapter | SC |
| A end polishing | PC, UPC, APC |
| B adapter | SC |
| B end polishing | PC, UPC, APC |
| Mode | SM, OM1, OM2, OM3, OM4 |
| Mode | SM |
| Insertion Loss | ≤ 0.2dB |
| Color | Green; Blue |
| Certification | RoHS and IEC |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >50 N |
| Teperature | -40~+85℃ |
