1X8 PLC Steel Tube G657A Fiber 0.9mm SM MM Passive Optical Splitter SGS Approval
Base specification
Product details
Product Specification
| Place of Origin | China Dongguan | Packaging Details | packing in Wooden drums, Polywooden drums or other drums according to clients' requests . |
| Product Name | 1 X 8 PLC Optical PLC Splitter | Certificates | CE,ROHS,ISO,SGS, |
| Model Number | 1 X 8 PLC Optical PLC Splitter | Branch number | 1 × 2,1 × 4,1 × 8,1 ×16,1 × 32,1 × 64 etc. |
| Supply Ability | 10000pcs per week | Operation Wave Length | 1260--1650 |
| Certification | CE,ROHS,ISO,SGS, | Brand Name | Qingying or QY |

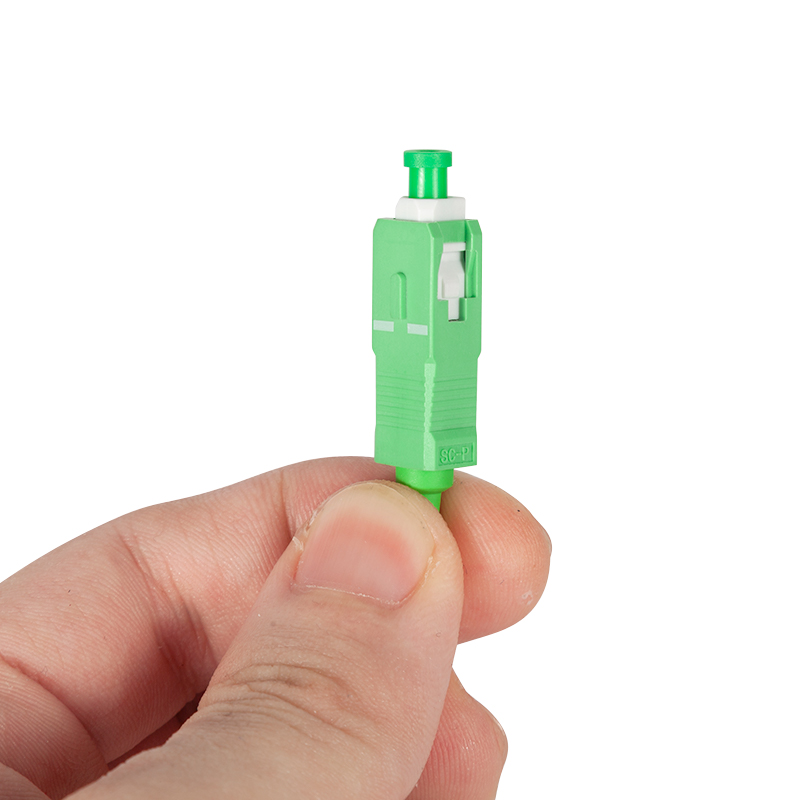

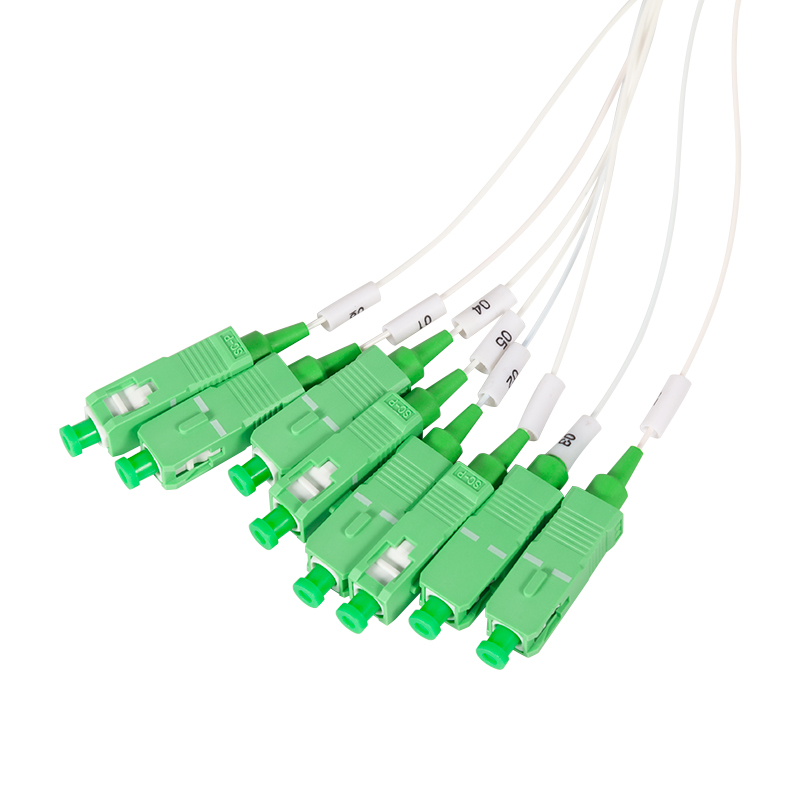

| Payment Terms | L/C, T/T, Western Union | Fiber connector: | SC / PC, SC / APC, SC/UPC |
| Price | negotiation | Grinding method: | PC.UPC.APC |
| Minimum Order Quantity | 100 pcs | Modes: | single-mode, multi-mode |
| Package Size | 30X20X 15 CM |
Product Description

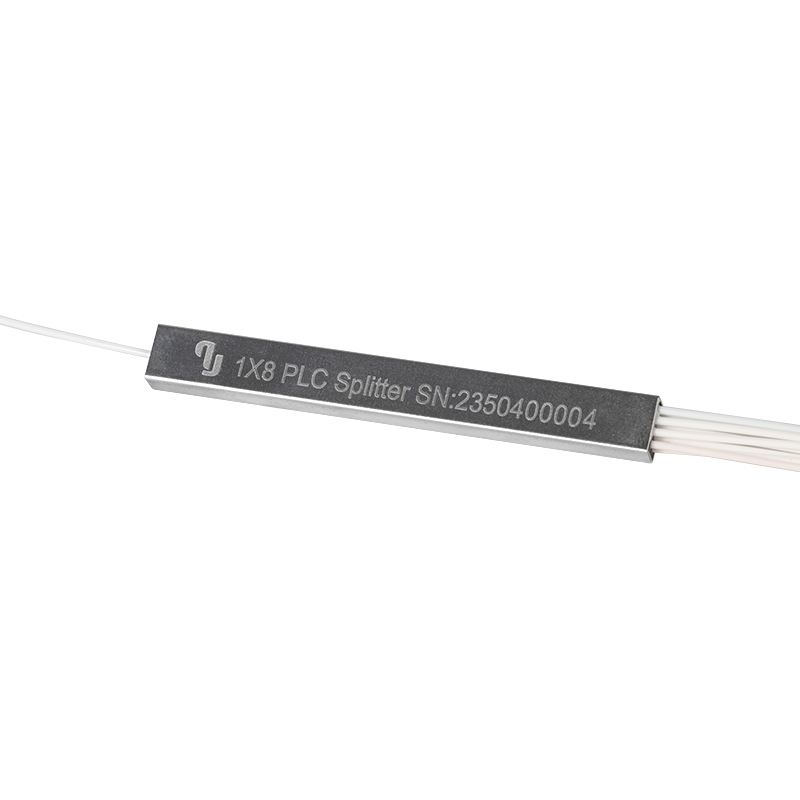

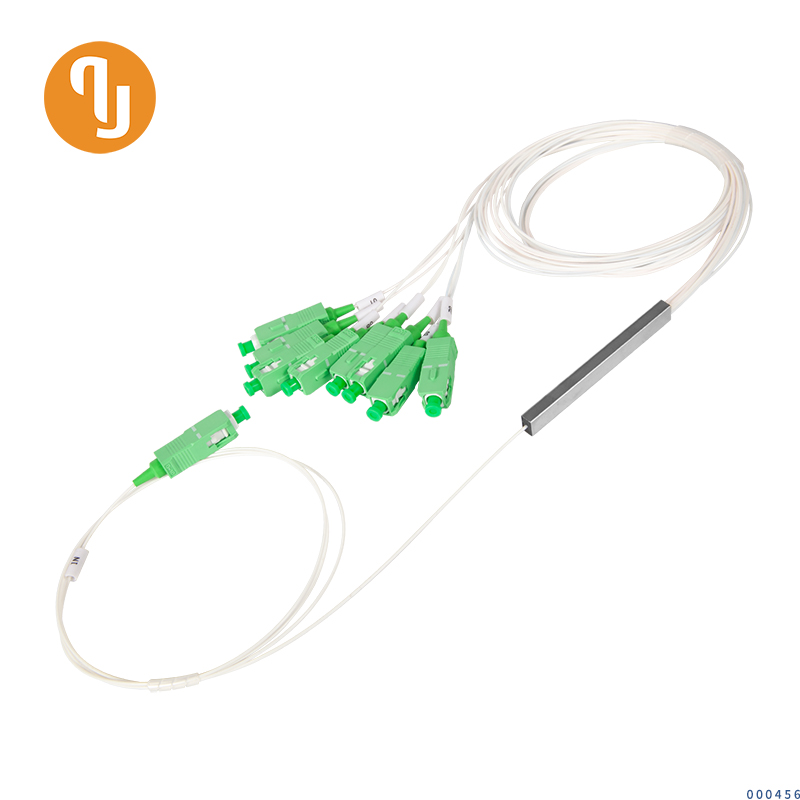

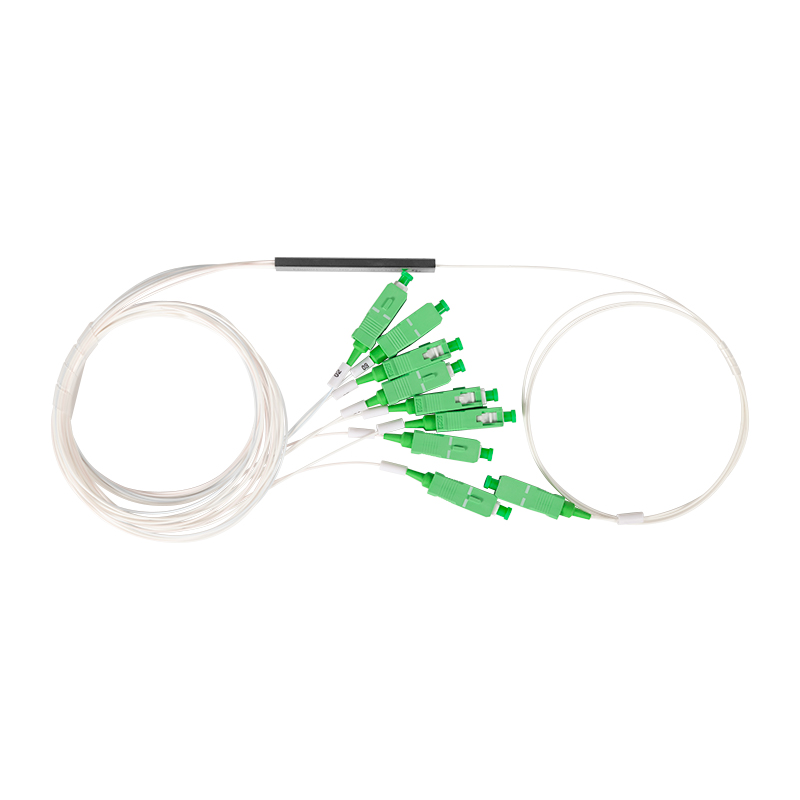

1X8 PLC Steel Tube G657A Fiber 0.9mm SM MM Passive Optical PLC Splitter
The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.
Outline
| Ports | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Max(P/S) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 |
| Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| PDL (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 |
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Standard Input Fiber | Bend Insensitive SM Single Fiber(ITU G.657A) | ||||||
| Standard Output Fiber | Bend Insensitive SM Ribbon Fiber(ITU G.657A) | ||||||
| Standard Output Color | Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B) | ||||||
| Max. Optical Power(mw) | 300 | ||||||
| Humidity Range(rh) | 5%~85% | ||||||
| Operating Temperature(℃) | -40~+85 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Connector Options | FC/SC/LC/ST/MU | ||||||
| Packaging Options | Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount | ||||||
|
* Telcordia GR-1221-CORE&G-1209-CORE Compliant.
|
|||||||
