QSC54K2-APC_3.0mm 2.0X3.0mm Fiber Optic Drop Cable Connector / SC APC fast connector
Base specification
Product details
Product Specification
| Connector | Fast Connector SC APC | Place of Origin | Dongguan,China |
| Packaging Details | Package details: 45 X 25 X 24 CM:(1000PCS) | Product Name | sc apc fast connector |
| Durability | 500 Times | Model Number | QSC54K2-APC |
| Supply Ability | 5000 Piece per day SC APC Fast Fiber Optic Connector | Certification | RoHS,SGS |
| MOQ | 100 PCS | Connector type | SC,LC,FC |
| Product Size | 60x9x7mm | Brand Name | QualitY or QY |
| Payment Terms | L/C, T/T, Western Union,Paypal | Price | Negotiation |
| Delivery Time | 7 working days | Minimum Order Quantity | 100 pcs SC APC Fast Fiber Optic Connector |
| Fiber type | SM |
Product Description

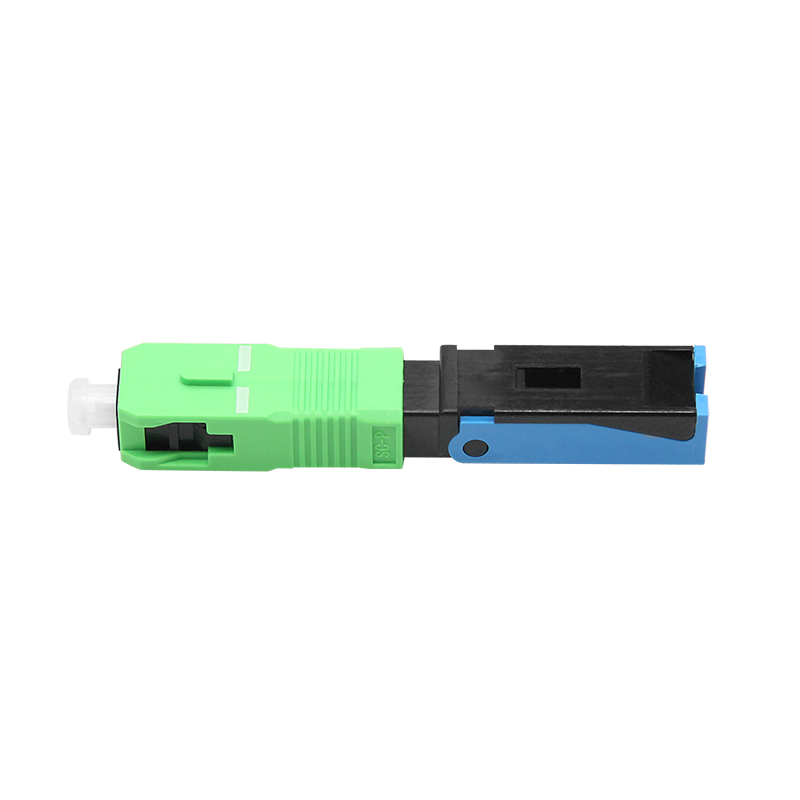

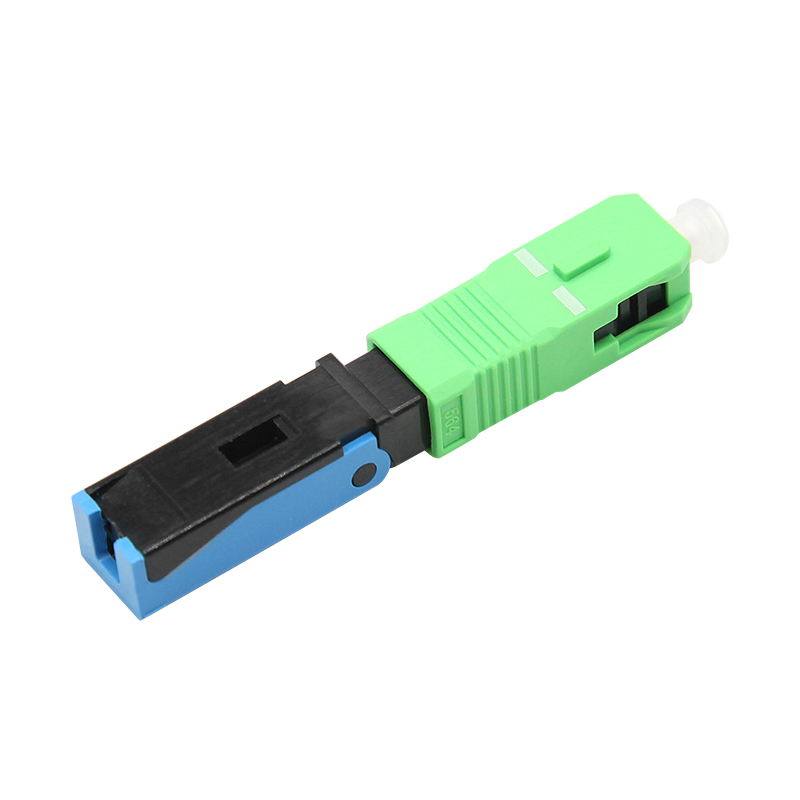

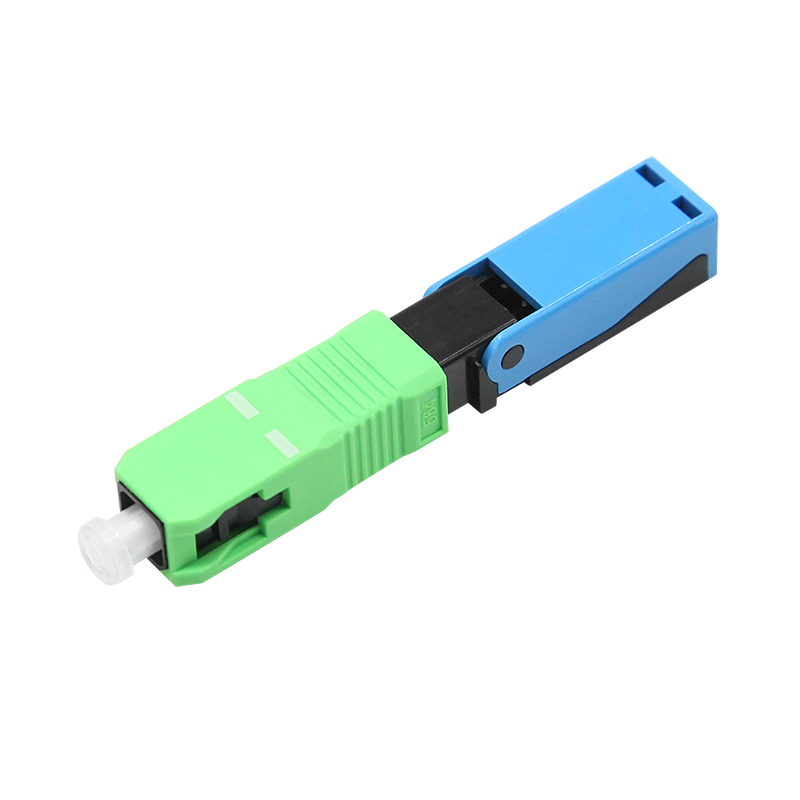

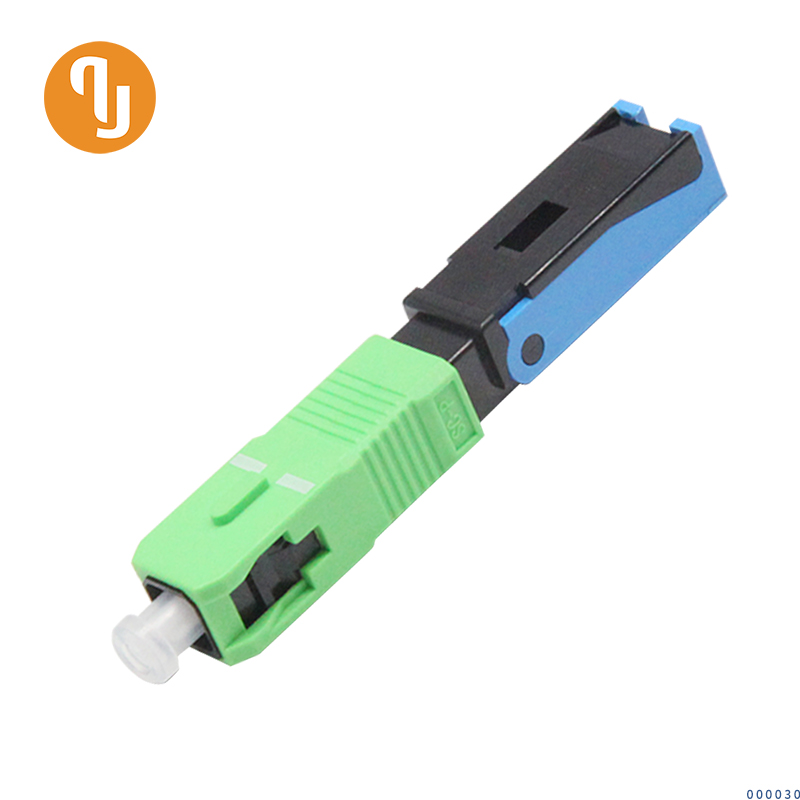

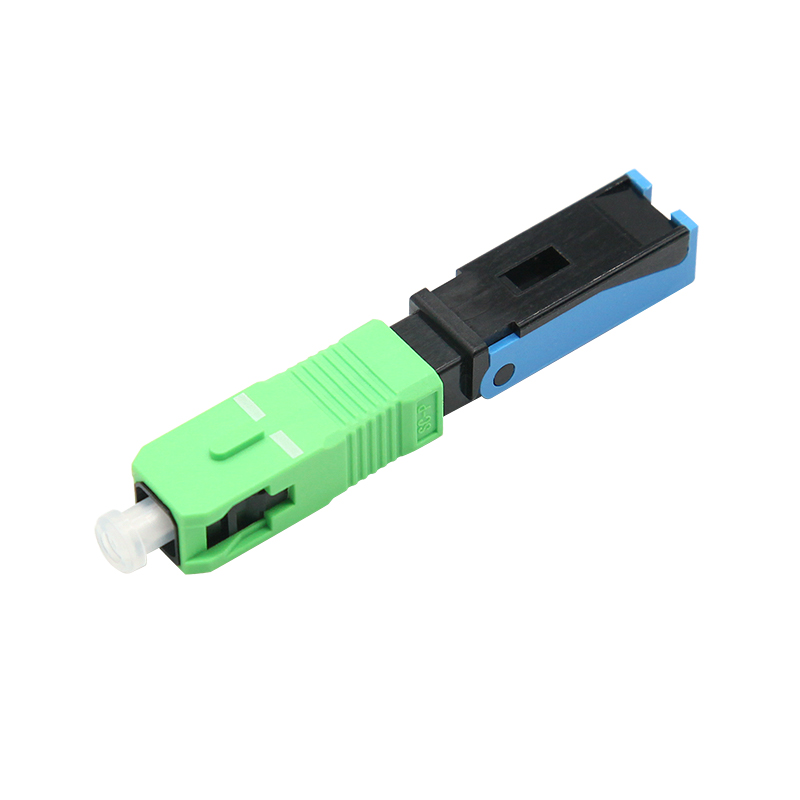

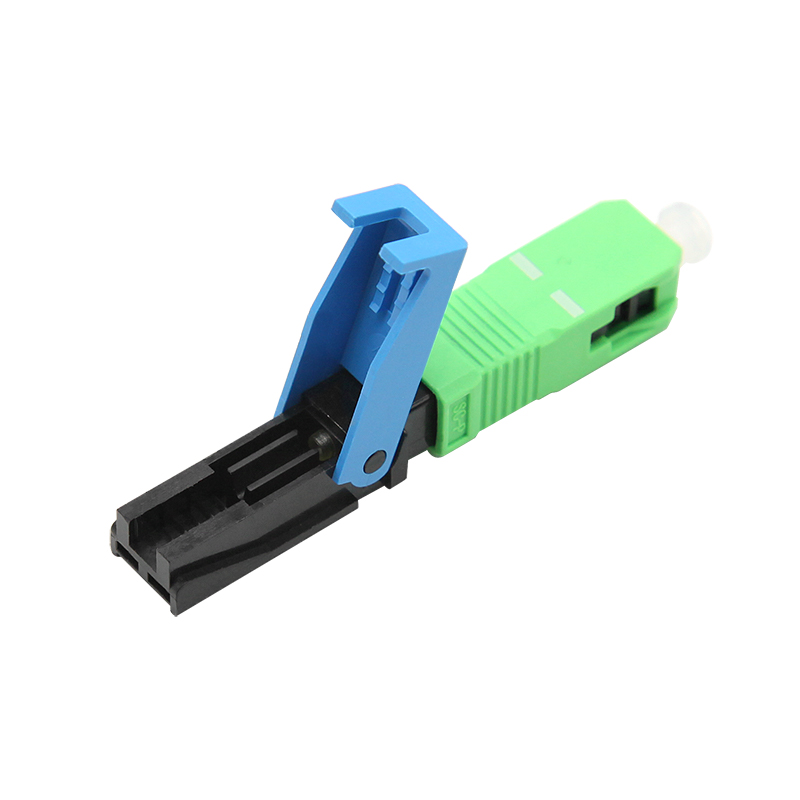

3.0mm 2.0X3.0mm Fiber Optic Drop Cable Connector / SC APC fast connector
1.Description
Our SC fast connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our fast connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.
2.Features

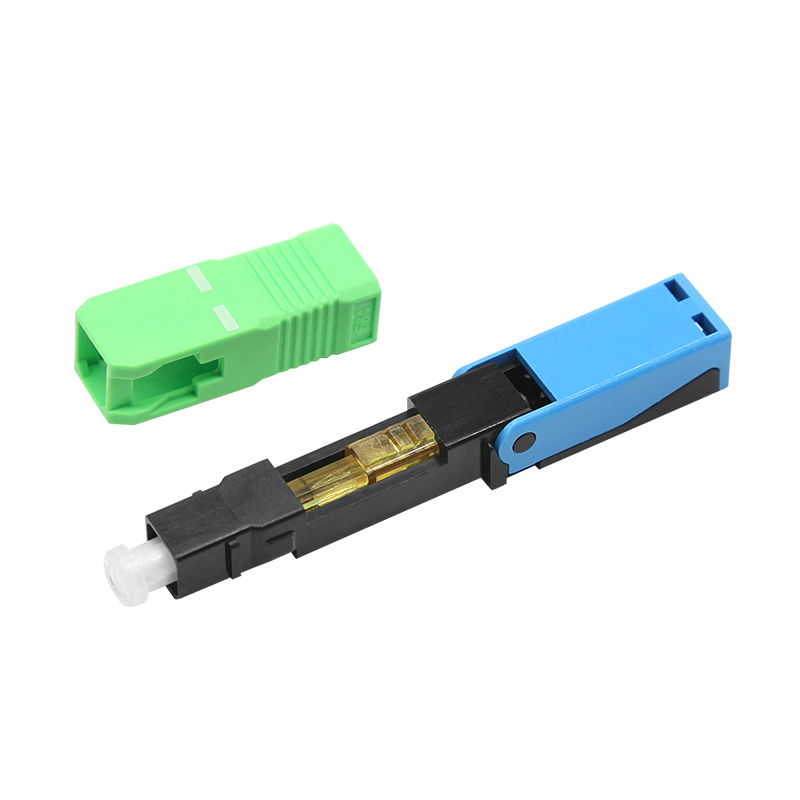

1.Factory-installed fiber stub
2.Low insertion loss
3.Quick and easy fiber termination in the field .
4.Eliminates cable excess length and pigtail splicestorage
5.Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable
3.Specification
|
product name |
FTTH SC/APC fiber optic fast connector |
|
Item |
value |
|
Insertion loss |
≤0.3dB(Max.0.5) |
|
Return loss |
≥60dB |
|
Connector type |
SC |
|
Fiber cable type |
Drop cable:3mm,flat:2x3 mm cable,0.9/2.0/3.0 fiber cable |
4.Application
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
5.Performance
(1).Insertion loss:≤0.3~0.5dB ,Return loss:≥60dB.
(2). Mechaincal Durability:1000matings
(3).Storage temperature:-40℃to+85℃
(4).Operation temperature:- 40 ~ + 85 ℃
(5).Tensile Strengh:>30N
(6).Number of repeated use:5 times above
(7).SC connector according to IEC 61754-4 .
(8).Suitable for cable outer diameter 0.9 mm, 2.0 mm and 3.0 mm, 2 * 3.0 mm.
