QSC51ZJ1-UPC High Stability Fiber Optic Fast Connector/Simplex SC APC Quick Connector/SC UPC Fast Connector
Base specification
Product details
QSC51ZJ1-UPC/APC
SC Fiber Optic Fast Connector Field Assembly Connector
Product Features
1. Highlight point: Innovative side press in and out key structure
2. Features: Low insertion loss, low usage cost, good maintainability, fast installation speed, reusable

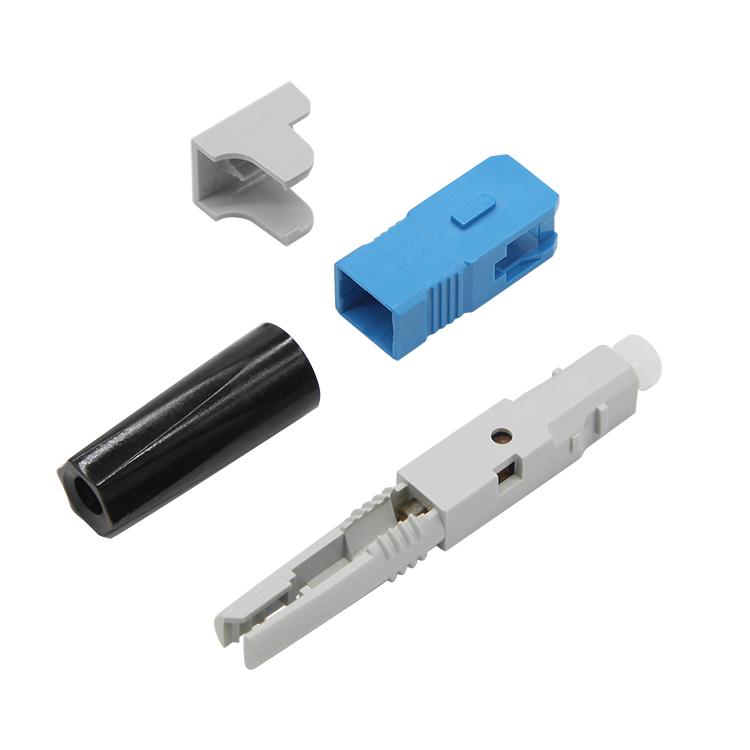

3. Material: The fiber optic clamping mechanism is made of alloy plastic PEI, which has extremely low deformation due to temperature changes and long-term clamping creep deformation. Other plastics are PBT and PE, which are environmentally friendly. SUS304 is selected as the internal metal component. Therefore, the product is suitable for low cold and high heat environments and is environmentally friendly
4. Scope of use: Intelligent high-speed broadband applications, security monitoring systems, fiber optic home access, broadband campus network, broadband cable TV, community fiber to the building, intelligent TV
5. Specification
|
Items |
Parameters |
|
IL |
≤0.3dB, MAX0.5dB |
|
RL |
UPC≥50dB；APC≥60dB |
|
Assemble time |
≤3mins, average |
|
Assemble pass rate |
≥95% |
|
Assemble repeat time |
≥5 |
|
Tension |
50N |
|
Cable |
3.0x2.0mm Drop cable |
|
Embedded fiber |
G657A1, or OEM G652D, MM62.5/125, MM50/125, OM3, OM4 |
|
Work temperature |
-25~+75°C or -40~+85°C |
|
Storage temperature |
-40~+85°C |
|
Fire resistance |
UL 94-V0 or as customer required |
|
Environment |
RoHS |
|

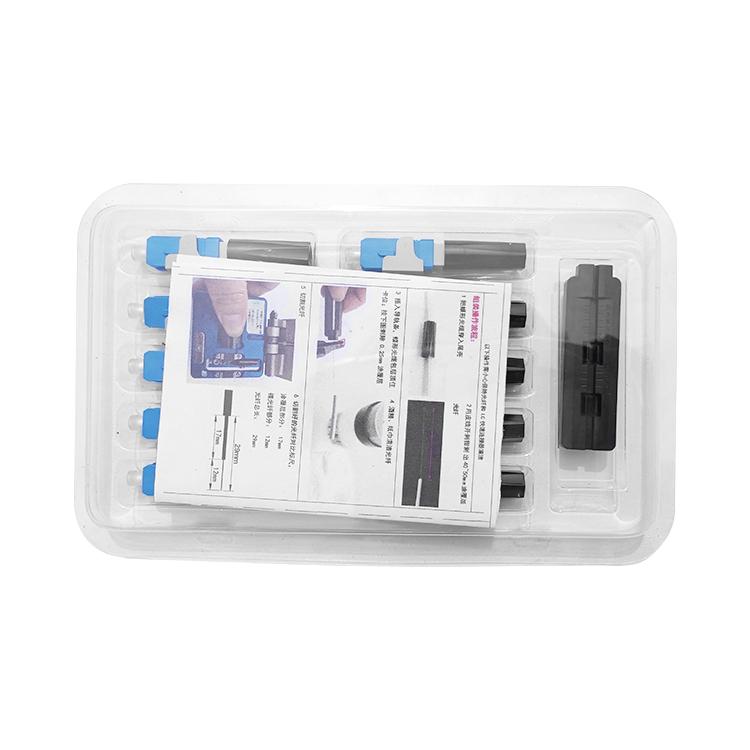

Accessories |
Guide part, use to guide the stripped length, cleave length (on fiber cleaver), and Operating Manual |
6.Warranty and Services
• 100% tested in factory
• 1-year warranty, lifetime technical support
