Armored Fiber Patch Cord ODVA(SC)-SC UPC SM SX G657A2 LSZH 5.0_3M
Armored Fiber Patch Cord ODVA(SC)-SC UPC SM SX G657A2 LSZH 5.0_3M
Hot
Hot
Sales Hotline: qy99@qyftth.com
0 Parameter
Bulk trade. Freight rates will be negotiated separately.
comprehensive qualifications
after-sale guarantee
equitable price
Product presentation
Armored Fiber Patch Cord ODVA(SC)-SC UPC SM SX G657A2 LSZH 5.0_3M
Base specification
Product details
Product Specification
| Place of Origin | Dongguan, China | Fiber length | 1M, 2M, Any length |
| Return loss | ≥50dB | Packaging Details | Plastic bag |
| Storage temperature | -40℃ ~ +70℃ | Model Number | QY-ODVA |
| Supply Ability | 20000 Piece/Pieces per Week | Certification | IEC or ISO9001 2015 |
| Connector type | ODVA/UPC | Brand Name | QY |
| Payment Terms | L/C, T/T, Western Union | Repeatability | ≤0.1dB |
| Price | negotiation | Delivery Time | 7 working days |
| Minimum Order Quantity | 20 Piece/Pieces | Insertion loss | ≤0.3dB |
| Fiber mode | Single mode | Interchangeability | ≤0.2dB |
| Operating temperature | -40℃ ~ +70℃ |
Product Description
Overview
With the continuous development of optical fiber communication technology, 5G commercial trial networks, high-speed local area networks, and optical access networks such as the market is sustained manner. Especially in the 4G, 5G, and WiMax base stations and fiber-optic distributed zoom technology, PDLC fiber optic cable connector assemblies are rapidly becoming the standard connector interface.
PDLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can meet the FTTA (fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
Application
Mainly used in NSN docking ports in horizontal and vertical wiring of wireless base stations such as Nokia and Siemens.
Features
1. Good mechanical and environmental characteristics
2. Flame retardant properties meet the requirements of relevant standards
3. The mechanical characteristics of the jacket meet the requirements of relevant standards
4. Soft, flexible, water blocked, UV resistant, easy to lay and splice, and large capacity data transmission;
5. Meet the needs of different markets and customers
Features
• Supports both single-mode and multimode fiber modes.
• Supports standard duplex LC connector that is well connected with standard LC adaptor
• The cord is lightweight, waterproof, and dustproof.
• It is also metal proof, hence can be used for metal hard housing.
• Supports low insertion and return loss.
• Supports steady optical transmission.
• The cord supports IP67 protection and is humidity proof, salt-mist-proof.

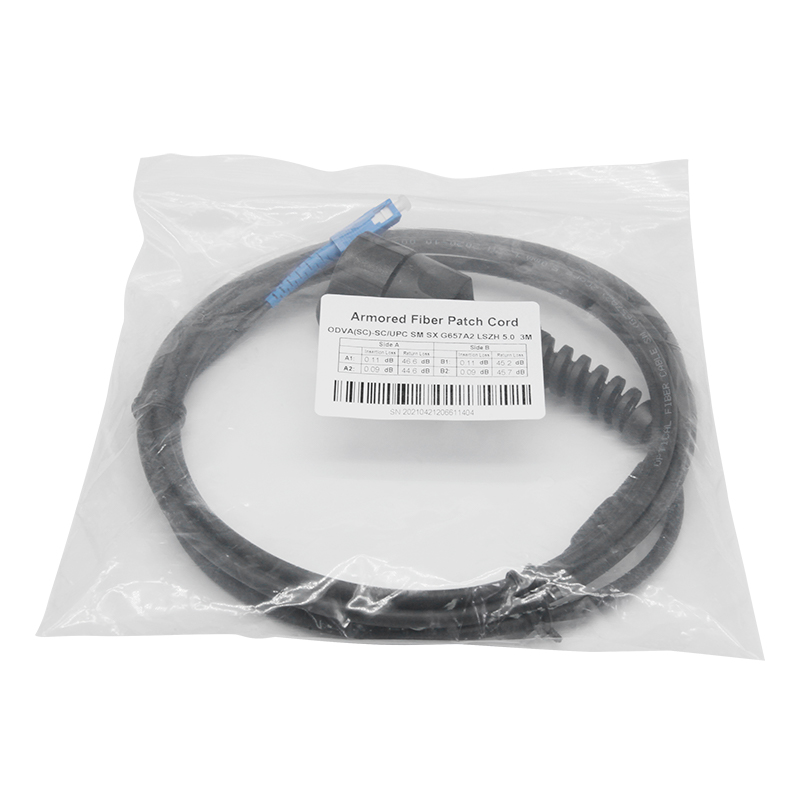

Packing & Labeling
